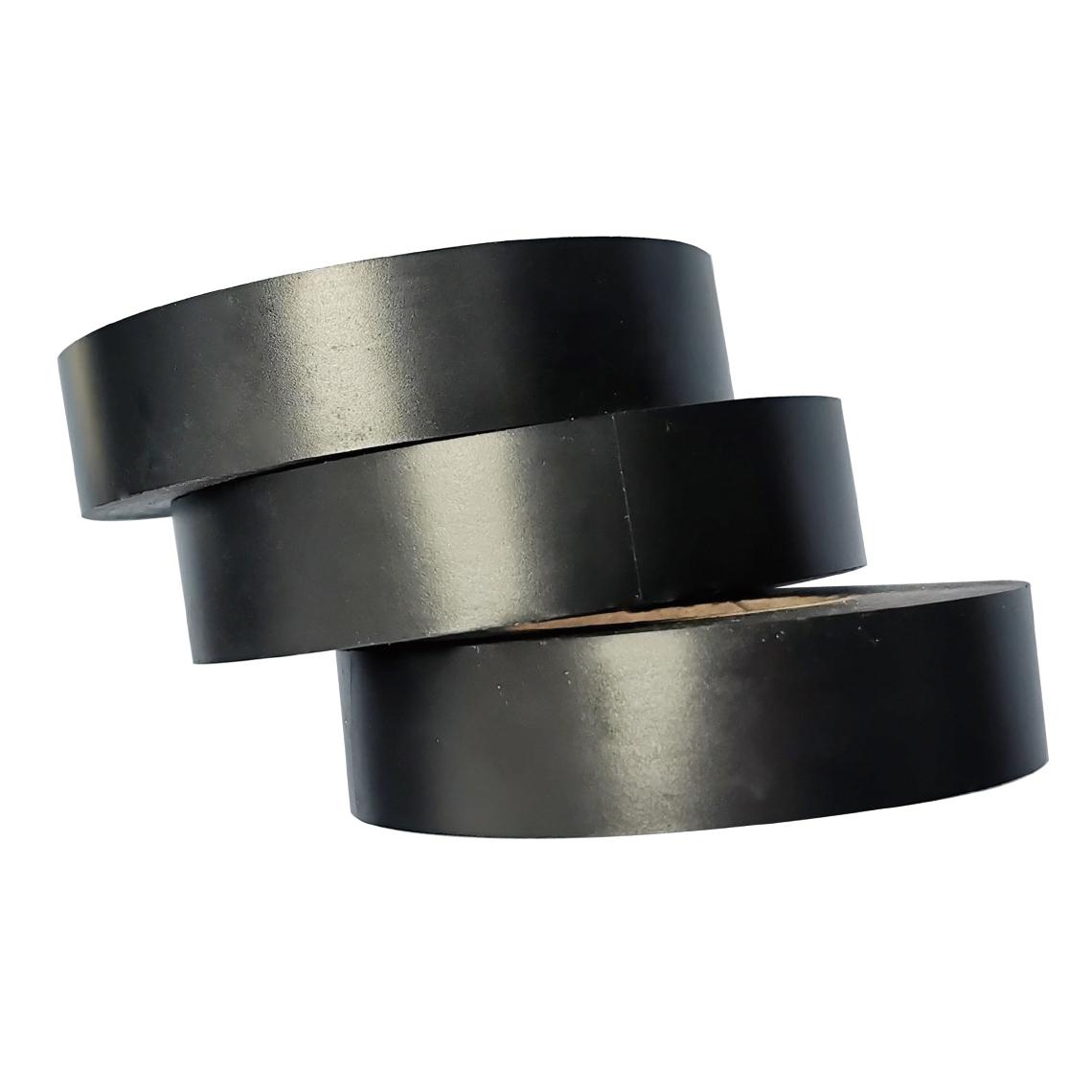

Our UL-certified PVC electrical insulation tape is a professional-grade electrical solution designed for superior insulation, splicing, and bundling in industrial, commercial, and residential electrical systems. Crafted from durable PVC film coated with a pressure-sensitive rubber-based adhesive, this high-voltage PVC insulation tape delivers an industry-leading 8,000 Volts per layer of insulation—13x higher than standard 600V electrical tape—making it the go-to choice for high-reliability low-voltage (up to 600V) applications. UL 510 listed for flame retardancy and dielectric strength, it forms an airtight, waterproof seal in seconds, preventing moisture ingress and corrosion while withstanding extreme temperatures from -50°C to +250°C. Its ultra-flexible design stretches over 300% to conform to irregular shapes, and it leaves zero adhesive residue upon removal—combining performance and convenience for electricians, manufacturers, and maintenance teams.
Superior High-Voltage Insulation: 8,000V per layer dielectric strength far exceeds standard electrical tape, providing robust protection for wire splices, connections, and exposed conductors in low-voltage systems.
Extreme Temperature Tolerance: Operates flawlessly from -50°C to +250°C, ensuring reliability in freezing outdoor environments and high-heat industrial enclosures alike.
300% Stretch & Conformability: Ultra-flexible PVC film molds to irregular shapes (e.g., wire harnesses, pipe ends) for a gap-free seal—eliminating air bubbles and moisture penetration.
All-Weather & Chemical Resistance: Resists UV rays, oil, salt spray, and most industrial chemicals, withstanding outdoor exposure and harsh industrial conditions without degradation.
Waterproof & Residue-Free: Forms an instant airtight, waterproof seal; leaves no sticky residue when removed, making it ideal for temporary masking and quick repairs.
UL-Certified Safety: Complies with UL 510 flame retardancy standards and strict dielectric strength benchmarks, ensuring compliance with global electrical safety codes.
Property | Technical Rating |
Core Material | High-Durability PVC Film |
Adhesive Type | Pressure-Sensitive Rubber-Based Adhesive |
Dielectric Strength | 8,000 Volts per layer |
Operating Temperature Range | -50°C to +250°C |
Maximum Stretch Ratio | >300% |
Flame Retardancy | UL 510 Certified |
Weather Resistance | UV, Water, Salt Spray Resistant |
Chemical Resistance | Resists Oil, Solvents, and Most Industrial Chemicals |
Adhesive Residue | Zero Residue Upon Removal |
Recommended Use Voltage | Up to 600V (Low-Voltage Systems) |
Operating Max Temperature | 80°C (Continuous Use) |
This UL-listed PVC insulation tape is a versatile workhorse for electrical and industrial applications, with core use cases including:

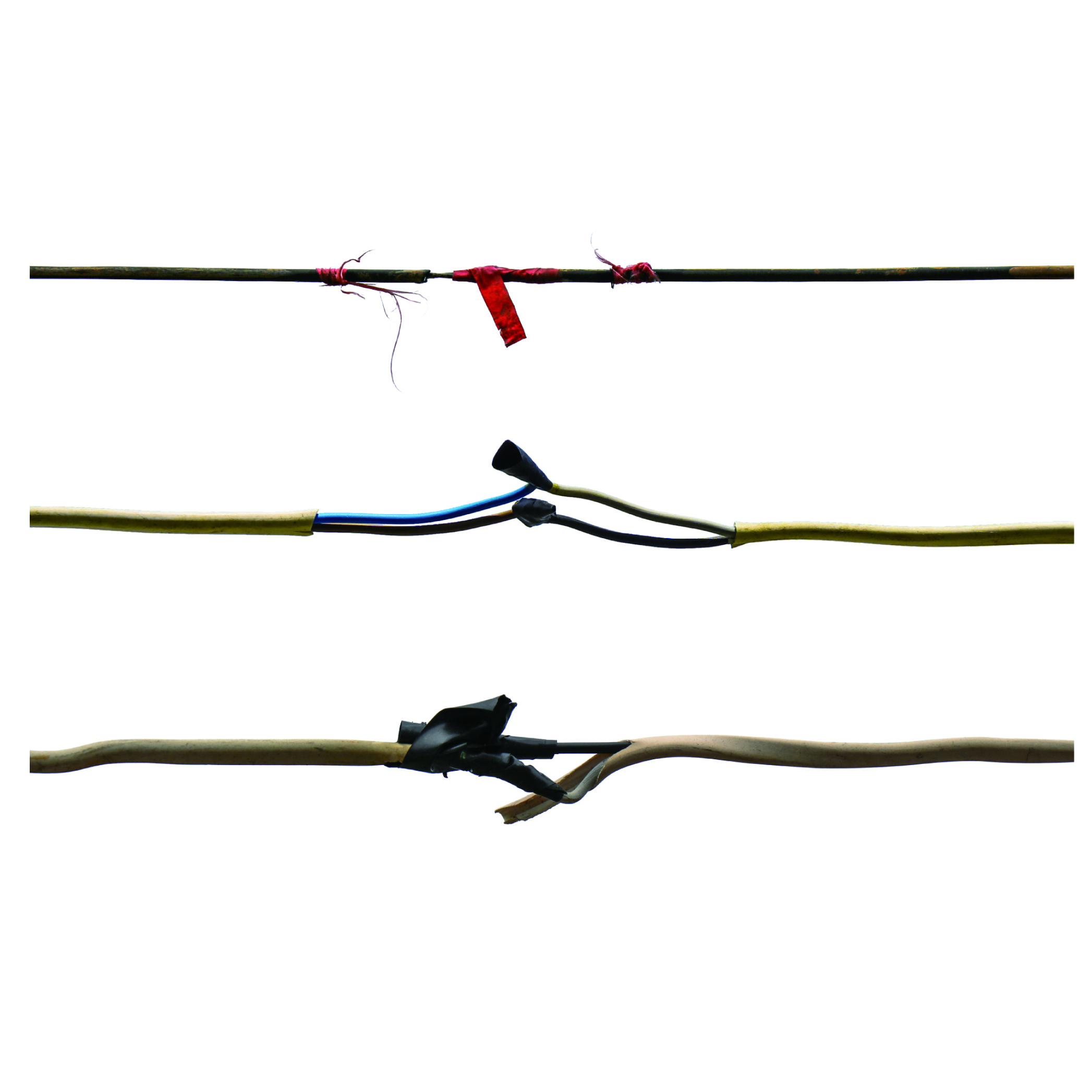

Electrical Insulation & Repair: Insulates wire splices, terminal connections, and exposed conductors in control panels, junction boxes, and residential wiring—preventing short circuits and ensuring OSHA/electrical code compliance.
Wire Harnessing & Phase Identification: Bundles loose wires into organized harnesses for appliance manufacturing, automotive wiring, and control cabinet assembly; available in multiple colors for cost-effective phase/circuit marking (black, red, blue, yellow).
Outdoor Moisture-Resistant Sealing: Seals electrical connections in garden lighting, HVAC units, and telecommunications cables—its waterproof and UV-resistant design protects against rain, dust, and mild corrosion in exposed outdoor settings.
Industrial Protection & Masking: Temporarily protects metal threads, pipe ends, and polished surfaces from scratches/rust during handling/painting; serves as solvent-resistant masking tape for spray painting/coating processes.
Light Mechanical Protection: Shields hoses and cables in machinery from minor abrasion, extending equipment lifespan in manufacturing and workshop environments.
Our PVC electrical insulation tape holds UL 510 certification—the gold standard for flame retardancy and dielectric strength in electrical insulation products. It complies with ANSI/UL electrical safety standards for low-voltage (up to 600V) insulation applications and meets global RoHS requirements for hazardous substance limits. The product’s rubber-based adhesive and PVC film conform to ISO quality control protocols, while its weather resistance ratings align with international outdoor electrical component standards. All batches are tested for consistent adhesion, stretch, and insulation performance—ensuring reliability for professional and industrial use.
A: It delivers 8,000 Volts per layer and is recommended for low-voltage applications up to 600V (the industry standard for residential/industrial low-voltage wiring).
A: Yes. Its salt spray and UV resistance make it ideal for coastal outdoor installations, protecting connections from corrosion and sun damage.
A: Absolutely. It maintains full flexibility at -50°C, ensuring a tight seal in cold climates where standard tape becomes brittle and cracks.
A: Yes. Its solvent resistance and clean, residue-free removal make it a perfect light-duty masking tape for painting and coating processes.
We provide custom PVC electrical insulation tape solutions for B2B partners, including custom color matching for brand/phase identification, tailored roll lengths (10m–50m) for manufacturing lines, and modified adhesive strength for specialized surfaces (e.g., smooth plastic, rough metal). For bulk procurement (MOQ 500 rolls), we offer volume pricing, bulk packaging options, and just-in-time delivery to support electrical contractors, appliance manufacturers, and construction firms. Our OEM/ODM services include private labeling, custom printing (e.g., safety instructions, brand logos), and formulation tweaks (e.g., enhanced heat resistance) for unique industrial requirements. Our dedicated B2B support team also provides technical documentation and compliance certificates to streamline your procurement and project approval processes.
