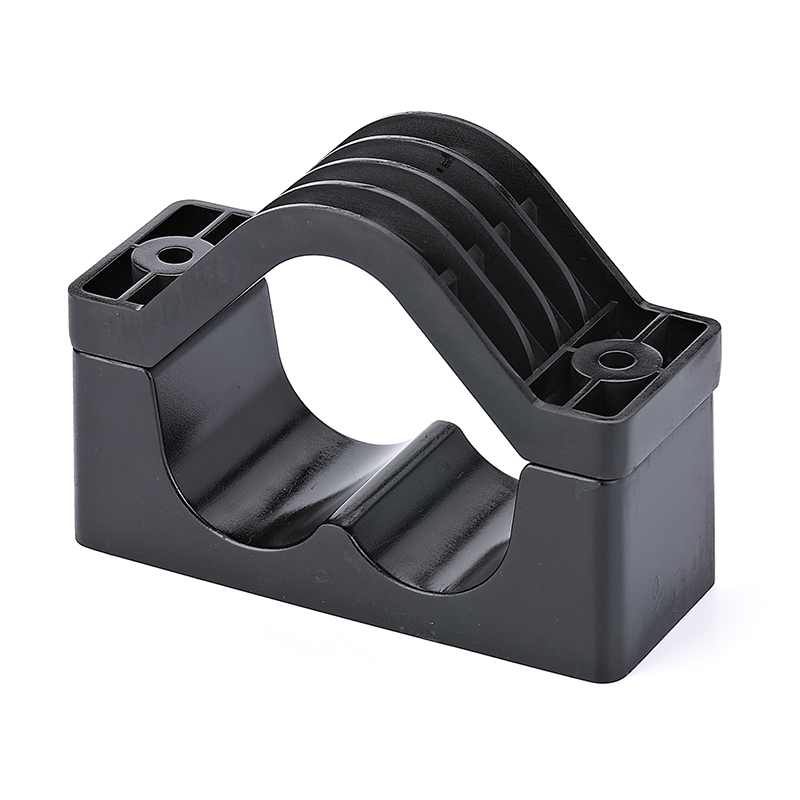

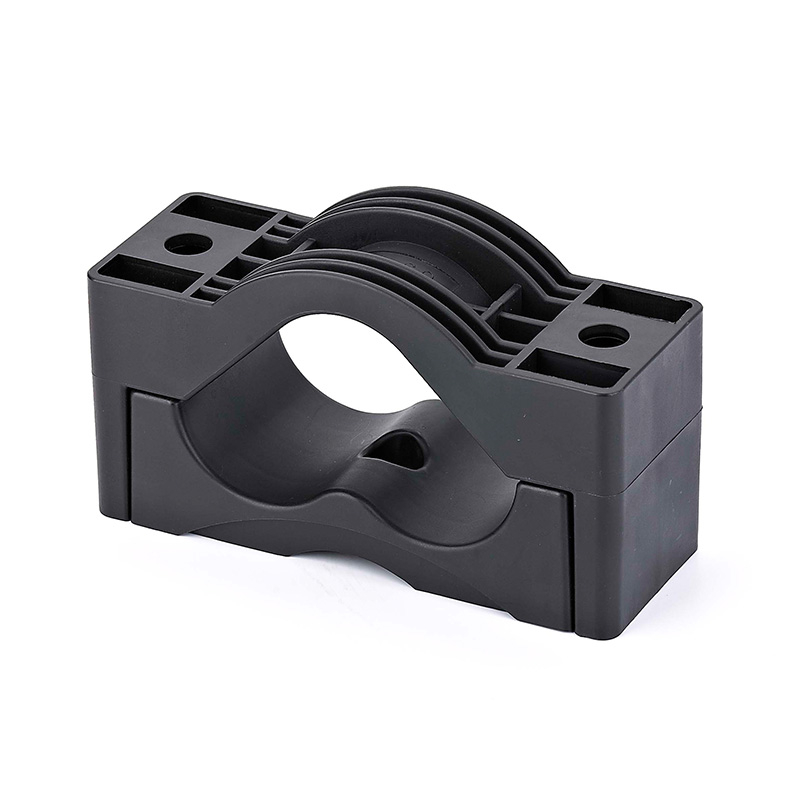

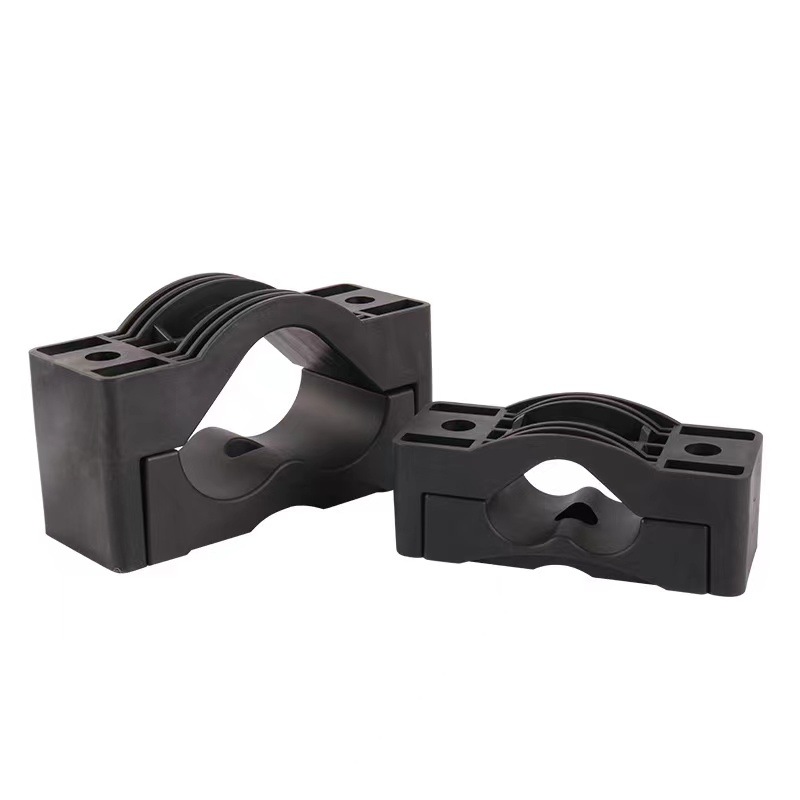

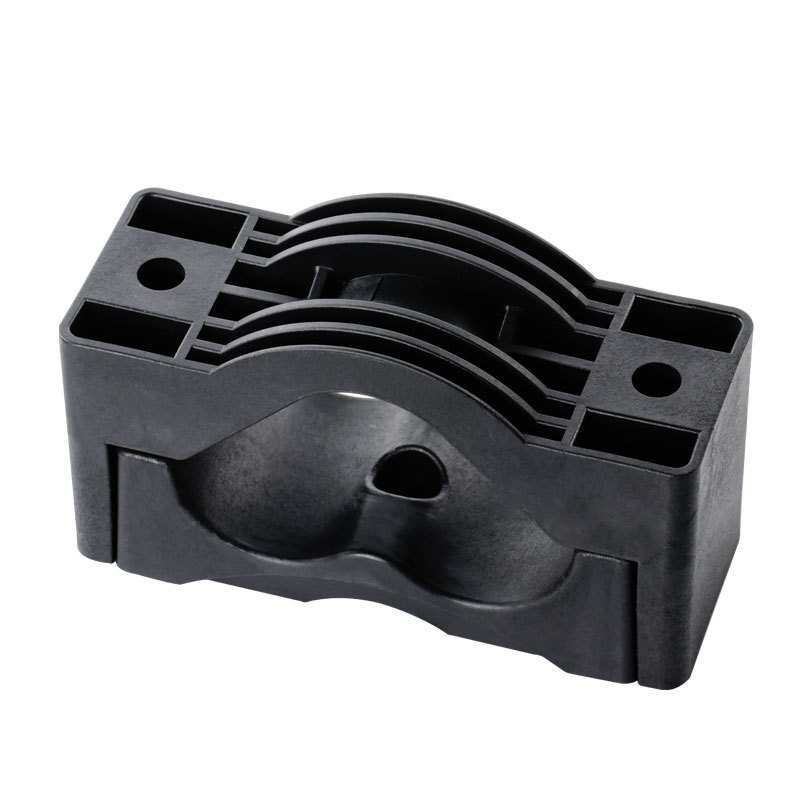

The plastic trefoil type power cable cleat is an industrial-grade cable management solution engineered to deliver a robust mechanical grip for secure cable alignment and fixation. Crafted from high-performance flame-retardant nylon, this trefoil cable cleat eliminates cable displacement caused by shock, vibration, or environmental stress, making it a staple for high-reliability electrical installations. Unlike metal alternatives, our nylon cable cleat boasts non-conductive properties, corrosion resistance, and fire safety, while its modular design enables quick installation with basic tools—reducing labor costs for industrial, commercial, and infrastructure projects. Available in four precision sizes, it accommodates cable outer diameters (OD) from 27mm to 90mm, serving single, multi-core, low, and high-voltage cable applications with equal efficiency.
Flame-Retardant & High-Temperature Resistant: Premium flame-retardant nylon construction resists high temperatures, avoids hardening over time, and meets industrial fire safety standards—critical for oil and gas, marine, and power generation environments.
Harsh Condition Durability: Withstands vibrations, shocks, and mechanical impacts, ensuring long-term performance in heavy-industry and outdoor settings where standard cleats fail.
Non-Conductive & Corrosion-Proof: Nylon material prevents electrical shorts against metal frames and resists chemical corrosion, salt spray, and UV degradation—ideal for coastal and industrial zones.
Versatile Compatibility: Fits low-voltage, high-voltage, mining, and wind energy cables, supporting single cable installation across diverse electrical systems.
Cost-Effective Installation: Bolt-on design requires no specialized equipment, cutting installation time by up to 50% and enabling reusability for temporary or semi-permanent setups.

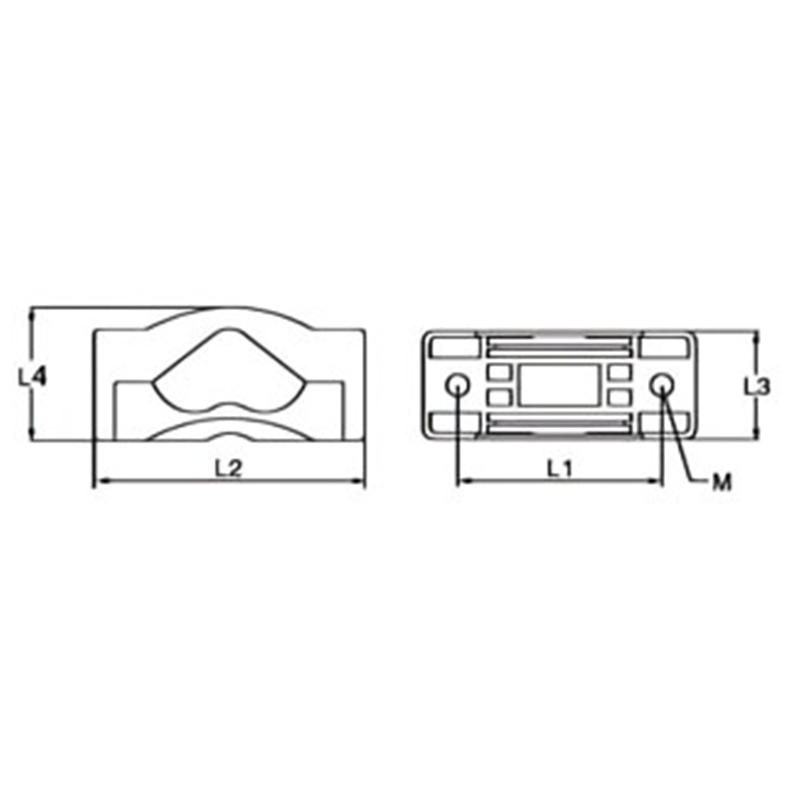

Part No. | L1 (mm) | L2 (mm) | L3 (mm) | L4 (mm) | M (mm) | Suitable Cable OD (mm) | Bolt & Nuts Configuration |
PCC-T27-38 | 125 | 180 | 75 | 75 | 15.5 | 27-38 | M10/M12 170mm |
PCC-T38-51 | 145 | 195 | 80 | 100 | 15.5 | 38-51 | M10/M12 170mm |
PCC-T51-69 | 170 | 220 | 85 | 130 | 15.5 | 51-69 | M10/M12 170mm |
PCC-T69-90 | 215 | 252 | 90 | 163 | 15.5 | 69-90 | M10/M12 170mm |
Our plastic trefoil cable cleat is engineered for cross-industry reliability, with core use cases including:
Industrial Control Panels & Cabinets: Secures power/signal cables in PLC cabinets and machinery enclosures, preventing abrasion and simplifying maintenance in manufacturing plants.
Commercial & Office Buildings: Fixes lighting, HVAC, and outlet wiring behind walls/ceiling voids, maintaining cable spacing to avoid overheating and complying with building electrical codes.
Public Infrastructure & Transportation: Secures control cables in metro tunnels, railway stations, and airports—its vibration resistance prevents loosening in high-traffic public spaces.
Renewable Energy (Solar/Wind): UV-resistant and weatherproof formulation protects DC cables in solar panel setups and wind turbine nacelles/towers from outdoor degradation.
Oil & Gas/Marine: Corrosion and chemical resistance make it ideal for offshore rigs, shipyards, and refineries where environmental stress is extreme.
All plastic trefoil type power cable cleats adhere to international industrial electrical standards, including fire retardancy and mechanical performance benchmarks for electrical cable management products. The flame-retardant nylon material meets global fire safety requirements for industrial electrical components, while the product’s dimensional precision complies with cable cleat installation standards for high-voltage and low-voltage electrical systems. Our manufacturing process follows ISO quality control protocols, ensuring consistent performance across bulk orders.
A: Only basic tools (adjustable spanner, drill for mounting holes) are required—no specialized equipment. The bolt-on design enables one-person installation.
A: Yes. Its UV-resistant and weatherproof nylon formulation withstands prolonged outdoor exposure, making it perfect for solar and wind energy cable setups.
A: Absolutely. The M10/M12 bolt configuration works with all standard mounting surfaces, including metal frames, concrete, and wooden structures.
A: Yes. The durable nylon construction and non-damaging grip allow repeated use without compromising cable integrity—ideal for semi-permanent/temporary setups.
We offer custom plastic cable cleat solutions for unique project requirements, including tailored dimensions for non-standard cable OD, modified flame-retardant ratings for extreme fire safety zones, and custom color coding for phase identification. For bulk procurement (MOQ 100 units), we provide volume-based pricing, flexible delivery timelines, and technical support—including on-site installation guidance for large-scale infrastructure and industrial projects. Our B2B customer team also offers OEM/ODM services, branding customization, and long-term supply agreements to support manufacturing and construction partners worldwide.
