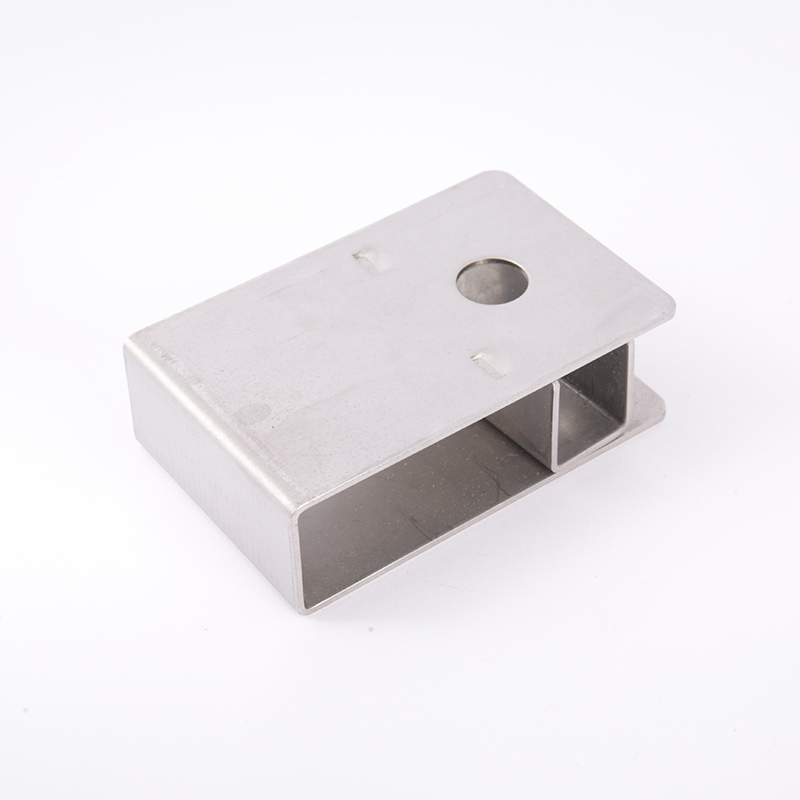

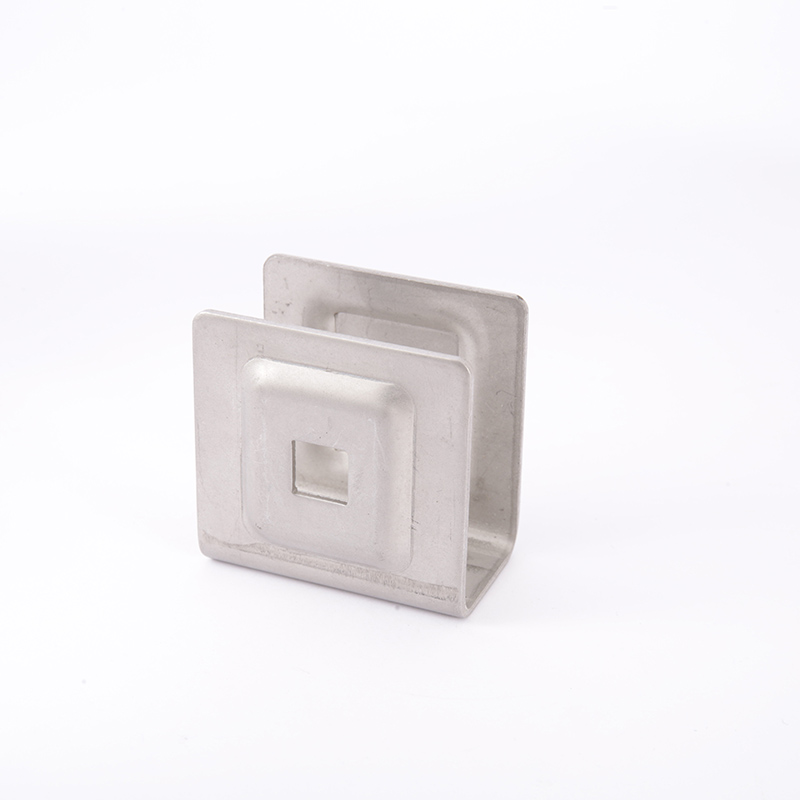

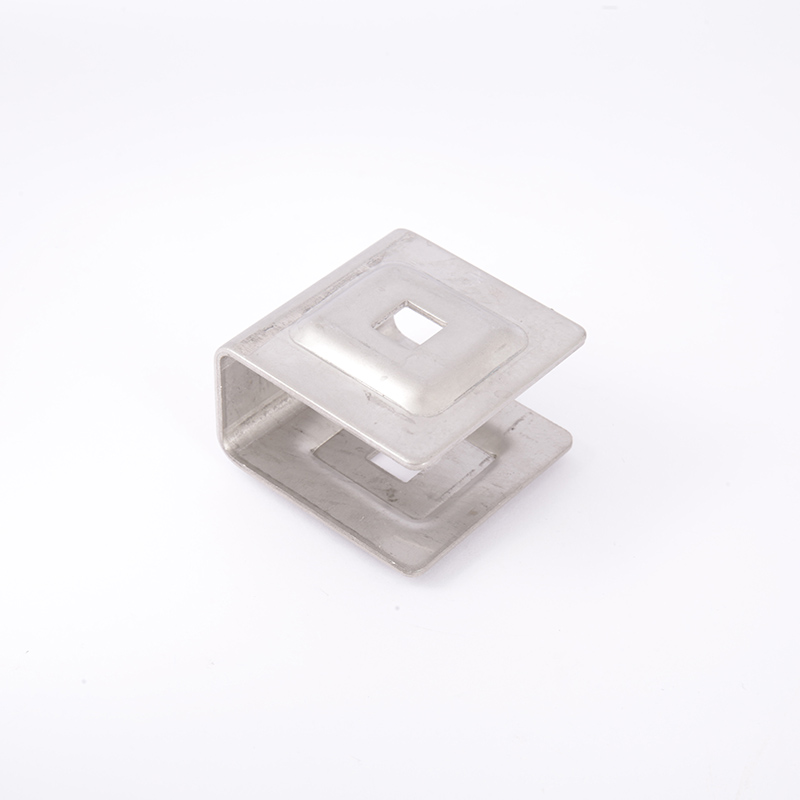

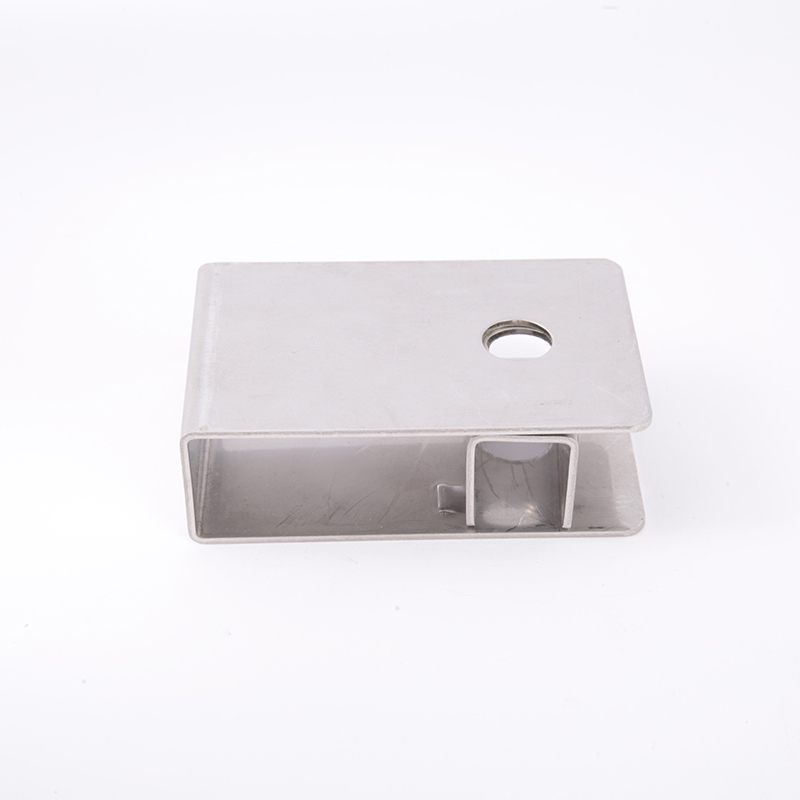

Our 316L stainless steel cable support mounting bracket is a heavy-duty structural solution engineered for secure cable cleat mounting and cable infrastructure support in the most demanding industrial environments. Manufactured from premium 316L stainless steel—the gold standard for corrosion resistance—this metallic C-clamp bracket is designed to fit plain ladder rungs, struts, and channel mounting frames without pre-drilled holes, delivering unmatched versatility for B2B clients in marine, chemical, and offshore sectors. Compliant with IEC 61914:2021 standards, the bracket features one M12 and two M10 clearance holes for flexible fixing positions, and has undergone rigorous short-circuit testing to ensure reliability in electrical installations. Unlike standard steel brackets, our 316L stainless steel mounting bracket retains structural integrity across extreme temperatures and corrosive conditions, requiring minimal maintenance for long-term use in industrial and commercial infrastructure projects.
316L stainless steel (022Cr17Ni12Mo2) contains 2-3% molybdenum, providing exceptional resistance to saltwater, chemical exposure, and pitting corrosion. Ideal for marine, coastal, and chemical plant applications where standard 304 stainless steel fails.
Engineered to meet the latest IEC 61914:2021 cable cleat standards, the bracket delivers high load-bearing capacity and withstands short-circuit electromechanical forces, ensuring cable tray and conduit stability in high-voltage electrical installations.
As an austenitic stainless steel, the bracket is 100% non-magnetic, eliminating electromagnetic interference (EMI) in sensitive electrical and data center systems. It retains strength from -200°C to 500°C, suitable for both cryogenic and high-temperature industrial settings.
The M12/M10 clearance hole configuration and adjustable fixing positions fit all standard stainless steel cable cleats, ladder rungs, and struts—no custom drilling required, streamlining installation for electrical contractors and infrastructure engineers.
Smooth, non-porous 316L stainless steel surface resists dirt and bacterial growth, meeting strict hygiene standards for food, pharmaceutical, and cleanroom applications, while eliminating the need for painting or coating over its lifespan.
Parameter | Details |
Product Type | 6.1.1 Metallic C-Clamp Cable Support Mounting Bracket |
Material | 316L Stainless Steel (022Cr17Ni12Mo2, S31603) |
Design Specification | IEC 61914:2021 (latest edition for electrical cable cleats) |

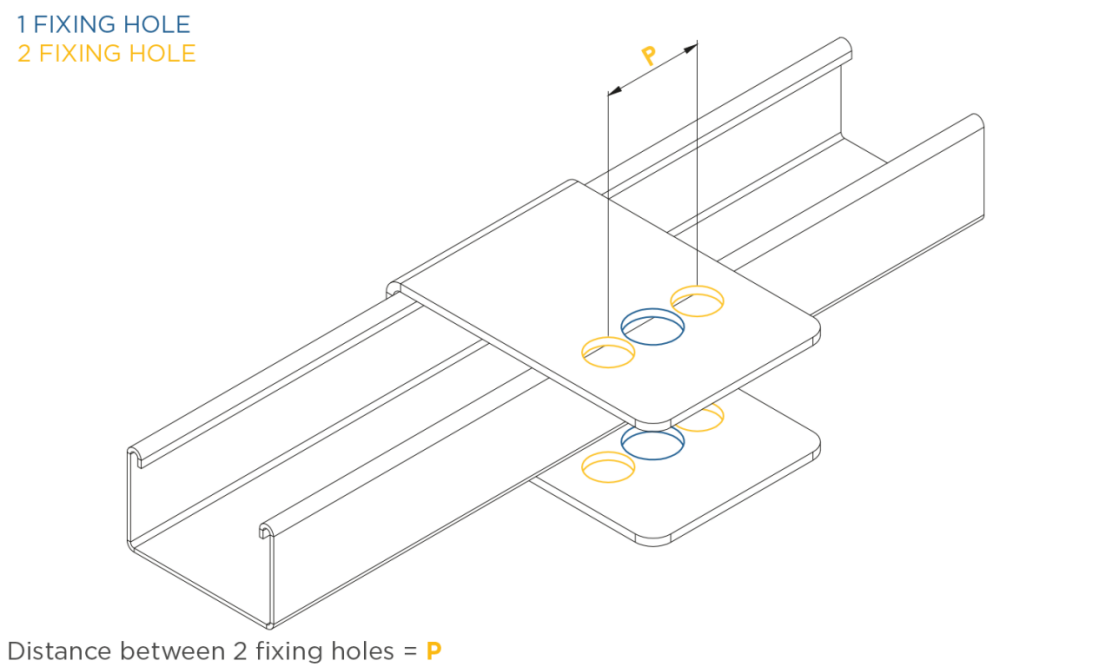

Fixing Holes | 1 x M12 clearance hole, 2 x M10 clearance holes (flexible positioning) |
Material Properties | Non-magnetic, max carbon content 0.03%, hardness <200HV |
Corrosion Resistance | Resists saltwater, chemical solvents, and industrial fumes |
Operating Temperature | -200°C to 500°C |
Compatibility | All standard stainless steel cable cleats, ladder rungs, struts, channel frames |
Secure cable trays and conduits on ships, docks, and offshore oil/gas platforms—316L stainless steel withstands constant saltwater exposure and harsh marine conditions, complying with offshore engineering standards.
Mount cable cleats and pipework in chemical processing facilities—superior resistance to acid/alkaline exposure eliminates corrosion risks, ensuring safety in hazardous chemical environments.
Support HVAC, electrical, and plumbing systems in cleanrooms and food processing plants—hygienic, non-porous surface meets FDA and GMP hygiene standards, with no corrosion-related contamination risks.
Fix cable trays and conduits in high-rise buildings, data centers, and manufacturing plants—the universal design fits all standard mounting frames, with non-magnetic properties protecting sensitive electronics from EMI.
Install cable infrastructure in power plants, wind farms, and solar facilities—IEC 61914 certified strength withstands short-circuit forces, while extreme temperature resistance suits power generation environments.
Mount electrical and plumbing systems in coastal buildings and industrial parks—316L corrosion resistance prevents rust and structural degradation from salt air exposure.
IEC 61914:2021 certification for cable cleat and electrical installation safety
316L stainless steel meets ASTM and GB/T 20878-2024 material standards
Non-magnetic certification for EMI-sensitive applications
Compliant with GB 50168-2018 for cable line construction and acceptance
A: 316L stainless steel contains molybdenum for superior pitting/corrosion resistance—ideal for marine/chemical environments—while 304 is suitable for mild indoor conditions. Our bracket uses 316L for long-term durability in harsh settings.
A: It is compatible with all our stainless steel cable cleats and most industry-standard cleats, ladder rungs, and struts. The flexible M12/M10 holes allow for custom positioning.
A: Yes—certified to IEC 61914:2021 standards, it withstands short-circuit forces and extreme weather, making it suitable for high-voltage outdoor electrical infrastructure.
A: Absolutely—the smooth, non-porous 316L surface is hygienic, easy to clean, and meets FDA and GMP standards for food and pharmaceutical manufacturing.
We offer tailored bulk procurement solutions for B2B clients in construction, electrical engineering, and offshore industries, with volume pricing for orders over 500 units. Customization options include precision drilling for custom fixing hole configurations to match project-specific mounting frames, polished or brushed surface finishes for hygienic and aesthetic requirements, and custom laser cutting for non-standard ladder rung/strut sizes. Our technical engineering team provides on-site support for large-scale infrastructure projects, including bracket selection and installation guidance to ensure compliance with IEC 61914 and local building codes. For bulk orders, we offer flexible delivery schedules and dedicated project management to meet tight construction timelines. Contact our B2B sales team for a custom quote, material test reports, and lead time details.
