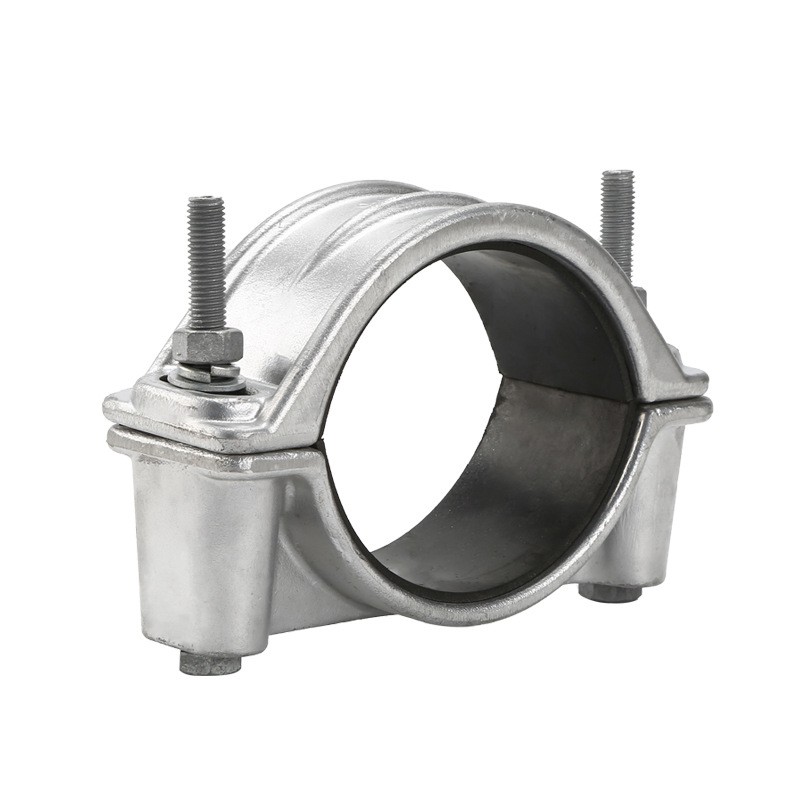

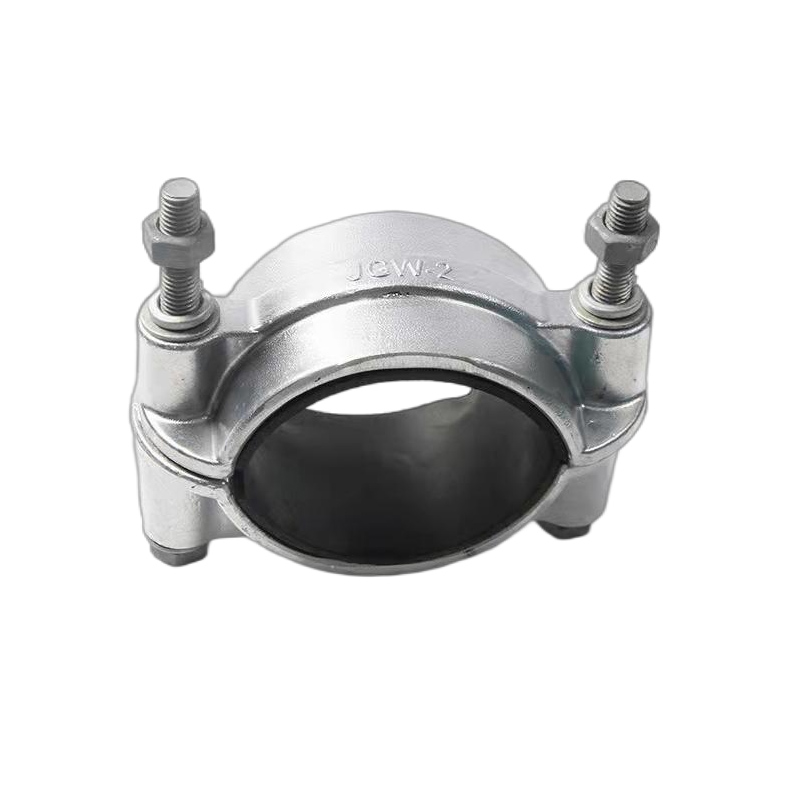

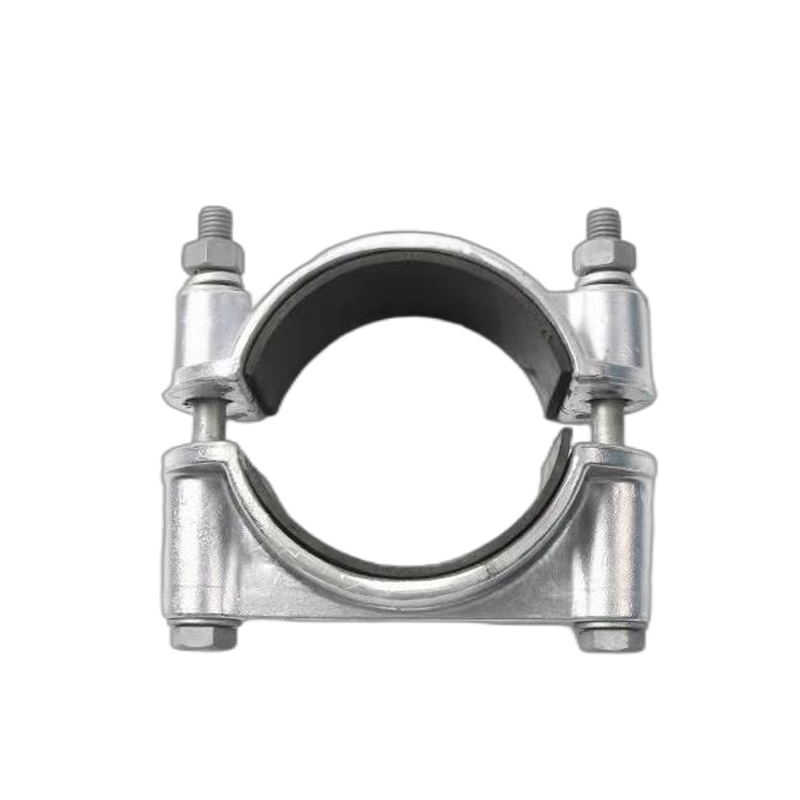

Our aluminum single cable cleat is a precision-engineered solution for permanent and secure fixing of single-core power cables in all electrical installation scenarios. Forged from high-grade aluminum alloy, this cleat delivers an unbeatable combination of lightweight design and industrial-grade strength, eliminating the bulk of traditional metal cleats while retaining superior mechanical support. With excellent corrosion resistance, it is engineered for both indoor and outdoor deployment, from commercial building wiring to harsh renewable energy field sites. Its one-piece structural design streamlines cable management in tray, ladder and direct-fix applications, making it the go-to choice for B2B clients seeking reliable, long-lasting cable fixing solutions that comply with global industry standards.
The aluminum single cable cleat provides robust mechanical anchoring and certified short-circuit withstand capability, ensuring the integrity of your entire cable system even under fault conditions. Its anti-deformation structure maintains a secure grip over long-term use, reducing maintenance costs for industrial clients.
Leveraging the inherent properties of aluminum, this cleat is 60% lighter than steel alternatives, simplifying on-site installation and structural load reduction. Its non-magnetic design prevents eddy current losses in high-voltage cable systems, optimizing energy efficiency for power distribution projects.
Featuring a user-friendly one-piece design, the cleat enables quick and secure mounting without complex auxiliary parts. B2B installers can complete cable fixing with minimal tools, cutting down on labor time and project delivery cycles for large-scale installations.
High-grade aluminum alloy with anti-oxidation treatment ensures excellent resistance to moisture, dust and mild chemical corrosion, making it suitable for both indoor switchgear rooms and outdoor solar/wind farm environments.

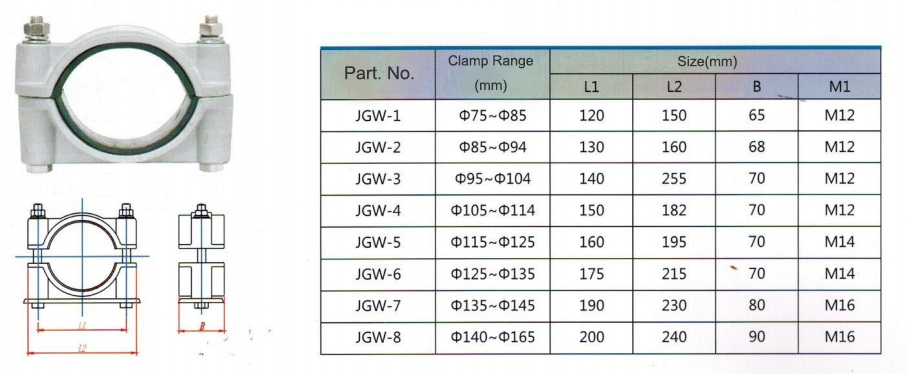

Part No. | Clamp Range (mm) | L1 (mm) | L2 (mm) | B Size (mm) | Fixing Bolt (M1) |
JGW-1 | 75~85 | 120 | 150 | 65 | M12 |
JGW-2 | 85~94 | 130 | 160 | 68 | M12 |
JGW-3 | 95~104 | 140 | 255 | 70 | M12 |
JGW-4 | 105~114 | 150 | 182 | 70 | M12 |
JGW-5 | 115~125 | 160 | 195 | 70 | M14 |
JGW-6 | 125~135 | 175 | 215 | 70 | M14 |
JGW-7 | 135~145 | 190 | 230 | 80 | M16 |
JGW-8 | 140~165 | 200 | 240 | 90 | M16 |
The lightweight aluminum cable cleat is ideal for solar farms and wind turbine installations, where its corrosion resistance and lightweight design adapt to outdoor field conditions and simplify tower-top cable fixing.
Essential for substations, switchgear and panel wiring, it provides reliable short-circuit protection for high-voltage single-core cables, ensuring the stability of power grid distribution systems.
Perfect for cable management in factory workshops and commercial high-rises, its easy installation meets the efficiency requirements of large-scale building electrical projects.
Ideal for direct fixing on factory structures and cable trays, it withstands the mechanical vibration of industrial equipment and maintains long-term cable stability.
Our aluminum single cable cleat is fully manufactured to meet the international standard IEC 61914, the global benchmark for cable cleat performance and safety. Every unit undergoes strict quality testing to ensure compliance with mechanical strength, short-circuit withstand and corrosion resistance requirements, providing B2B clients with a certified and reliable product that meets regional and international electrical installation codes.
A: Match the cleat’s clamp range to the outer diameter of your single-core cable. Refer to our technical specification table or contact our engineering team for customized size recommendations for special cable types.
A: Yes, its high-grade aluminum alloy construction offers excellent resistance to salt spray corrosion. For extreme coastal conditions, we recommend our additional anti-corrosion coating option.
A: Tighten bolts to the torque specified in the product datasheet (provided with each order). Over-tightening may damage the cleat or cable insulation; always use a calibrated torque tool.
We offer custom aluminum single cable cleat solutions for B2B clients with special requirements, including non-standard clamp ranges, customized mounting dimensions and enhanced anti-corrosion treatments for extreme environments. Our bulk procurement program provides competitive factory-direct pricing for large-scale projects (solar farms, industrial plant construction, power grid upgrades), with flexible delivery schedules to match your project timeline. Our dedicated B2B sales and engineering team provides one-stop support, from pre-sales size selection to after-sales technical guidance, ensuring seamless integration of our cleats into your electrical installation projects. For bulk orders or custom inquiries, contact our sales team for a personalized quote and project solution.
