Our PVC coated stainless steel cable binding bands are a high-performance fastening solution for heavy-duty industrial cable management and object securing, combining the unbeatable tensile strength of AISI 316 stainless steel with the protective insulation of a seamless PVC coating. Engineered for B2B applications in harsh environments, these hybrid bands deliver mechanical robustness and corrosion resistance, eliminating galvanic reaction and electrical conductivity risks when securing live cables and metal structures. Available in multiple standard sizes (4.6mm-16mm width) with a smooth PVC sheath, our stainless steel cable ties with PVC coating are ideal for permanent and semi-permanent installations in marine, chemical, electrical and telecommunications industries—providing a maintenance-free alternative to traditional plastic ties and uncoated metal bands for heavy-load cable bundling and structural fastening.
Seamless PVC coating forms a watertight barrier over the stainless steel core, providing superior protection against salt spray, industrial chemicals, acids, alkalis and UV radiation—ideal for coastal, marine and chemical plant environments.
Non-conductive PVC sheath prevents accidental electrical contact, short circuits and grounding issues when securing live power cables and wiring looms near metal enclosures, enhancing workplace safety for electrical installations.
AISI 316 stainless steel core delivers exceptional tensile and loop strength, resisting stretching, breaking and vandalism—capable of securing heavy cable bundles, pipes and equipment with no deformation under constant vibration.
Tough PVC coating protects both the stainless steel core (from scratches that cause corrosion) and bundled cables/hoses (from sharp metal edges), eliminating abrasion damage in high-movement industrial equipment.
Stainless steel core withstands extreme temperatures (-40°C to 200°C); PVC coating remains flexible in low temperatures, ensuring reliable performance in outdoor, marine and cold-storage environments with no brittling or cracking.
Part No. | Width (mm) | Width (inch) | Thickness (mm) | Thickness (inch) | Core Material | Coating Material | Corrosion Resistance Grade |
BZ-3 | 4.6 | 0.18 | 0.35 | 0.014 | AISI 316 SS | Seamless PVC | Marine Grade (Salt Spray) |
BZ-3 | 7.9 | 0.31 | 0.35 | 0.014 | AISI 316 SS | Seamless PVC | Marine Grade (Salt Spray) |
BZ-3 | 10 | 0.39 | 0.35 | 0.018 | AISI 316 SS | Seamless PVC | Marine Grade (Salt Spray) |
BZ-3 | 12 | 0.47 | 0.45 | 0.018 | AISI 316 SS | Seamless PVC | Marine Grade (Salt Spray) |
BZ-3 | 12.7 | 0.5 | 0.45 | 0.018 | AISI 316 SS | Seamless PVC | Marine Grade (Salt Spray) |
BZ-3 | 15 | 0.59 | 0.45 | 0.018 | AISI 316 SS | Seamless PVC | Marine Grade (Salt Spray) |
BZ-3 | 16 | 0.62 | 0.45 | 0.018 | AISI 316 SS | Seamless PVC | Marine Grade (Salt Spray) |
Marine & Offshore Fastening: Securing wiring looms, piping and equipment on ships, docks and offshore platforms—resisting saltwater corrosion, constant vibration and sea spray with zero maintenance.
Chemical & Industrial Plant Installations: Bundling cables, hoses and pipes in chemical plants, wastewater treatment facilities and refineries, withstanding acid/alkali exposure and industrial chemical splashes.
Electrical & Telecommunication Infrastructure: Securing high-voltage cable bundles in substations, electrical cabinets and telecommunication trays—providing insulation and abrasion protection for critical power/communication lines.
HVAC & Plumbing Systems: Fastening insulation cladding on large ductwork and securing metal pipes/conduits in commercial and industrial buildings, preventing condensation-related corrosion on metal surfaces.
Outdoor Structural Securing: Permanent fastening of outdoor lighting, signage and cable trays in coastal and industrial areas, resisting UV degradation, wind and environmental corrosion for long-term reliability.
Our PVC coated stainless steel cable binding bands are manufactured to ISO 9001 quality standards, with the AISI 316 stainless steel core meeting ASTM A240 marine-grade corrosion resistance specifications. The PVC coating is fully RoHS & REACH compliant, free of hazardous substances and suitable for global industrial applications. All products pass salt spray testing (≥1000 hours) and mechanical strength testing, ensuring adherence to marine, chemical and electrical industry safety codes in North America, Europe, Asia and Australia.
A: AISI 316 contains molybdenum, delivering superior corrosion resistance to saltwater and industrial chemicals—making it the gold standard for marine, coastal and chemical plant applications, unlike 304 stainless steel which is limited to mild environments.
A: Yes, the non-conductive PVC coating provides reliable electrical insulation, preventing short circuits and grounding issues when securing live cables up to 10kV—ideal for electrical substation and power distribution installations.

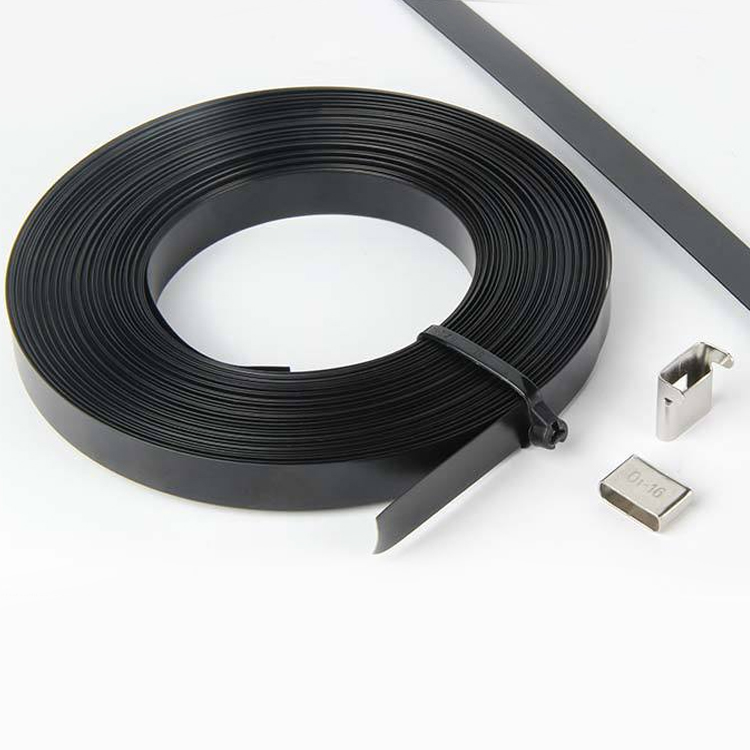

A: They can be easily cut to custom lengths with standard metal cutters and fastened with stainless steel buckles (sold separately); the smooth PVC coating ensures safe, tool-free handling with no sharp edges.
A: The PVC coating withstands continuous operating temperatures up to 80°C, with the AISI 316 core handling extreme temperatures up to 200°C—suitable for high-heat industrial areas like refineries and manufacturing plants.
We specialize in custom PVC coated stainless steel cable binding bands for B2B industrial buyers, offering tailored widths (3mm-20mm), thicknesses, PVC coating colors (black, yellow, red) and custom lengths for specific applications. Bulk procurement programs are available for marine contractors, electrical utilities, chemical plants and distributors, with volume-based pricing and flexible delivery options (FCL/LCL). Our production facility supports large-scale orders with short lead times, and we provide free sample kits (including different sizes and buckles) for pre-installation testing. For custom coating requirements, special corrosion resistance grades or bulk quote requests, our engineering team will work with you to develop tailored solutions—we offer dedicated after-sales support and technical guidance for all B2B partnerships.
