Our PVC coated selflock stainless steel cable ties merge the unbeatable tensile strength of stainless steel cores with the protective performance of industrial-grade PVC coatings, engineered for permanent heavy-duty bundling in harsh industrial environments. Unlike plastic alternatives, these ties deliver superior corrosion resistance, UV stability, and electrical insulation, with a tamper-proof ball-lock self-locking mechanism that ensures vibration-proof holding for critical cable management. Ideal for scenarios where plastic ties fail—such as high-temperature chemical plants, coastal marine installations, and outdoor infrastructure—stainless steel cable ties with PVC coating are the premium solution for B2B industrial and infrastructure cable bundling needs, supporting long-term, low-maintenance operation in extreme conditions.
The PVC coating forms an impermeable barrier over the stainless steel core, making these corrosion-resistant stainless steel cable ties immune to salt spray, humidity, chemical exposure, and industrial pollutants. Perfect for chemical plants, refineries, and coastal telecommunications sites.
Crafted from non-burning materials, these ties resist ignition and combustion, maintaining structural integrity at extreme temperatures. They are ideal for automotive engine bays, aerospace equipment, and high-heat manufacturing lines where plastic ties melt or become brittle.

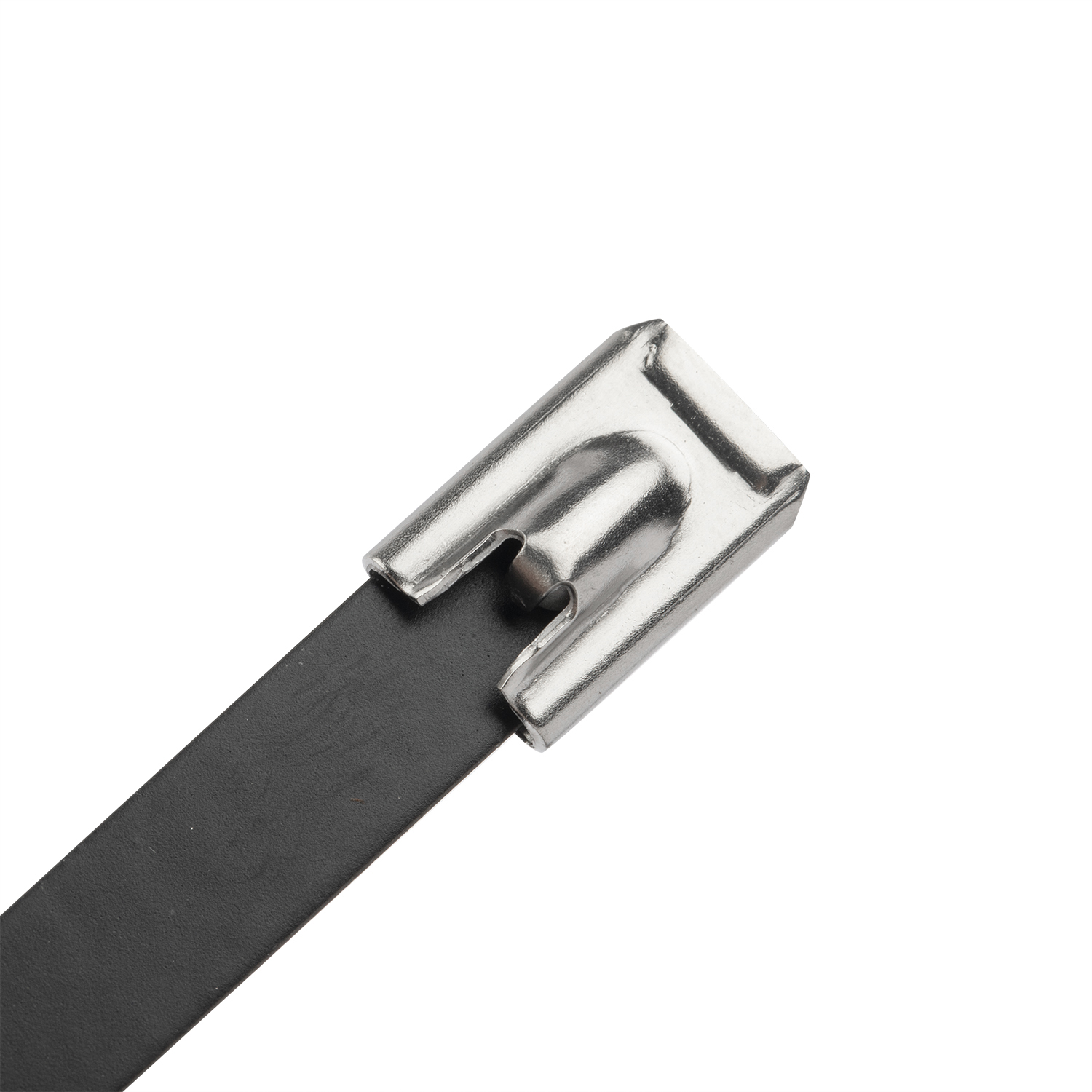

The integrated ball-lock self-locking mechanism creates an irreversible hold that withstands constant vibration in heavy machinery and transportation systems, eliminating loosening and ensuring critical cable connections remain intact under stress.
The non-porous stainless steel material is resistant to sanitizing chemicals and steam cleaning, meeting strict hygiene standards for food, beverage, and pharmaceutical processing facilities where plastic ties harbor bacteria.
Part No. | Width (mm) | Width (inch) | Length (mm) | Length (inch) | Thickness (mm) | Thickness (inch) | Max Bundle Dia (mm) | Max Bundle Dia (inch) | Min Bundle Dia (mm) | Min Bundle Dia (inch) | Min Tensile strength (N) | Min Tensile strength (lbs) |
STB 5.6x150 | 5.6 | 0.22 | 150 | 5.9 | 0.8 | 0.039 | 37 | 1.46 | 12.7 | 0.5 | 400 | 90 |
STB 5.6x200 | 5.6 | 0.22 | 200 | 7.9 | 0.8 | 0.039 | 50 | 1.97 | 12.7 | 0.5 | 400 | 90 |
STB 5.6x250 | 5.6 | 0.22 | 250 | 9.8 | 0.8 | 0.039 | 63 | 2.48 | 12.7 | 0.5 | 400 | 90 |
STB 5.6x350 | 5.6 | 0.22 | 350 | 13.8 | 0.8 | 0.039 | 89 | 3.5 | 12.7 | 0.5 | 400 | 90 |
STB 5.6x450 | 5.6 | 0.22 | 450 | 17.7 | 0.8 | 0.039 | 115 | 4.53 | 12.7 | 0.5 | 400 | 90 |
STB 5.6x600 | 5.6 | 0.22 | 600 | 23.6 | 0.8 | 0.039 | 154 | 6.06 | 12.7 | 0.5 | 400 | 90 |
STB 5.6x750 | 5.6 | 0.22 | 750 | 29.5 | 0.8 | 0.039 | 178 | 7.01 | 12.7 | 0.5 | 400 | 90 |
STB 5.6x900 | 5.6 | 0.22 | 900 | 35.4 | 0.8 | 0.039 | 229 | 9.02 | 12.7 | 0.5 | 400 | 90 |
STB 9x200 | 9 | 0.35 | 200 | 7.9 | 0.9 | 0.039 | 52 | 2.05 | 25.4 | 1 | 600 | 135 |
STB 9x250 | 9 | 0.35 | 250 | 9.8 | 0.9 | 0.039 | 65 | 2.56 | 25.4 | 1 | 600 | 135 |
STB 9x300 | 9 | 0.35 | 300 | 11.8 | 0.9 | 0.039 | 78 | 3.07 | 25.4 | 1 | 600 | 135 |
STB 9x400 | 9 | 0.35 | 400 | 15.7 | 0.9 | 0.039 | 102 | 4.02 | 25.4 | 1 | 600 | 135 |
STB 9x450 | 9 | 0.35 | 450 | 17.7 | 0.9 | 0.039 | 118 | 4.08 | 25.4 | 1 | 600 | 135 |
STB 9x500 | 9 | 0.35 | 500 | 19.7 | 0.9 | 0.039 | 128 | 5.04 | 25.4 | 1 | 600 | 135 |
STB 9x650 | 9 | 0.35 | 650 | 25.6 | 0.9 | 0.039 | 165 | 6.5 | 25.4 | 1 | 600 | 135 |
STB 9x800 | 9 | 0.35 | 800 | 31.5 | 0.9 | 0.039 | 204 | 8.03 | 25.4 | 1 | 600 | 135 |
STB 9x1000 | 9 | 0.35 | 1000 | 39.4 | 0.9 | 0.039 | 254 | 10 | 25.4 | 1 | 600 | 135 |
Secure cables, conduits, and hoses in chemical plants, refineries, and steel mills—withstanding continuous heat, oils, and chemical exposure without degradation.
Ideal for telecommunications towers, power distribution lines, and marine dock equipment, resisting UV radiation, salt spray, and extreme weather for years of maintenance-free use.
Secure wire harnesses in engine bays, aircraft interiors, and heavy machinery, withstanding constant vibration and temperature fluctuations for critical system reliability.
Sanitizable and bacteria-resistant, these ties bundle cables on processing equipment and conveyor systems, complying with strict hygiene and washdown requirements.
In fire alarm systems, server rooms, and emergency lighting, the non-combustible design maintains circuit integrity longer than plastic ties, aiding fire safety regulation compliance.
Our PVC coated stainless steel cable ties are fully compliant with international industry standards, including IEC 61914 (for electrical cable management) and RoHS (for restricted hazardous substances). They also meet marine equipment specifications for salt spray resistance and industrial fire safety requirements for non-combustible materials, ensuring global B2B application eligibility.
A: Yes, the heavy-duty PVC coating and stainless steel core provide superior saltwater corrosion resistance, making them suitable for shallow subsea marine equipment and coastal dock installations.
A: Hand tightening for initial fit, with cable tie tensioning pliers for final tensioning; cutting pliers trim excess tail to avoid sharp edges—standard industrial tools for B2B installations.
A: They maintain performance from -25°C to +80°C (continuous use) and tolerate short-term extreme heat up to 150°C, far exceeding plastic tie capabilities.
A: No, the ball-lock mechanism is irreversible for tamper-proof security—designed for permanent industrial installations, a key requirement for B2B critical cable management.
We offer custom PVC coated stainless steel cable ties with tailored widths, lengths, and coating thicknesses to meet unique B2B industrial requirements—including high-temperature PVC formulations for extreme heat applications and food-grade coatings for pharmaceutical facilities. Bulk procurement is available for industrial distributors, construction firms, and manufacturing plants, with volume-based pricing and flexible delivery timelines. Our technical team provides personalized product selection support to match your specific bundling needs, from marine infrastructure to aerospace manufacturing.
