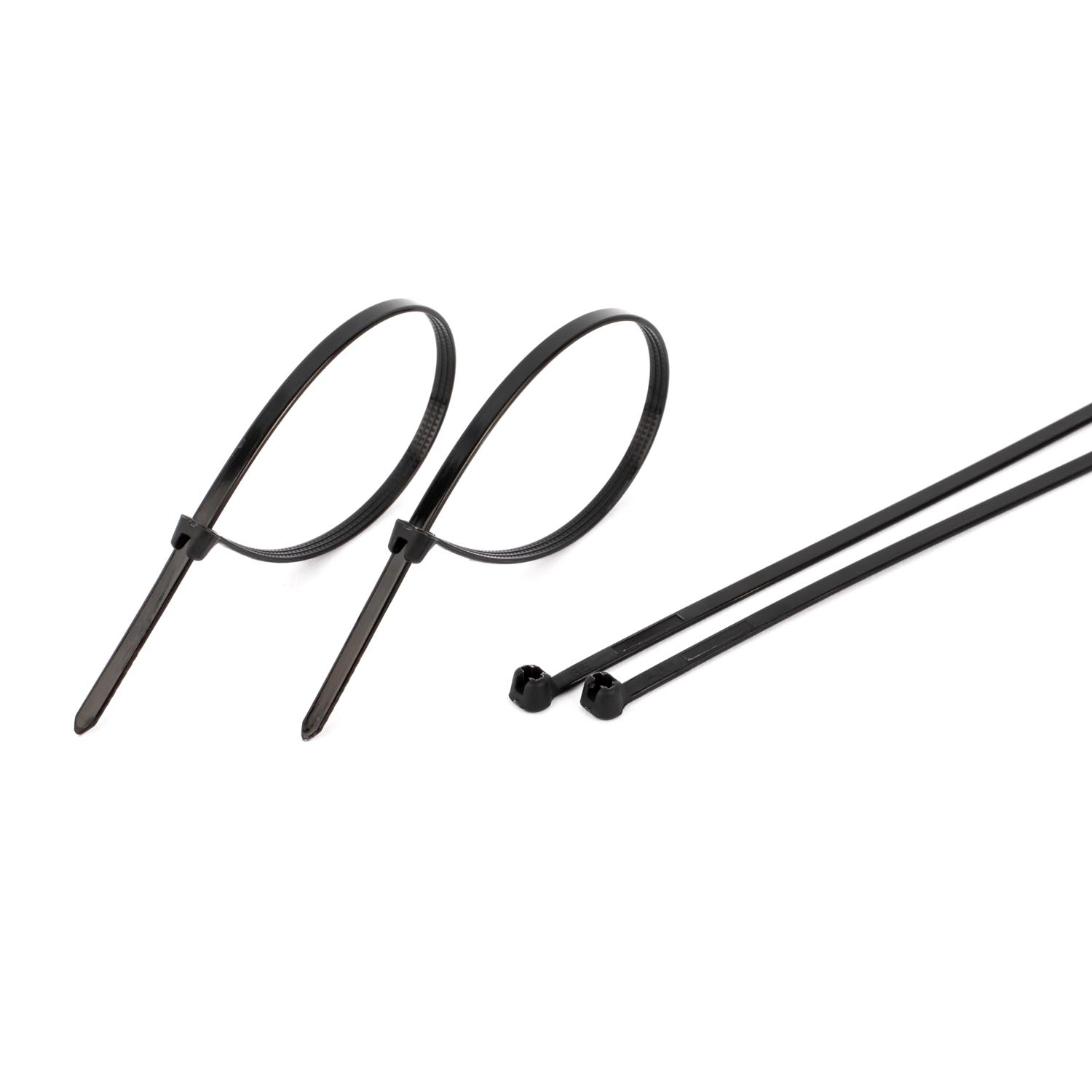

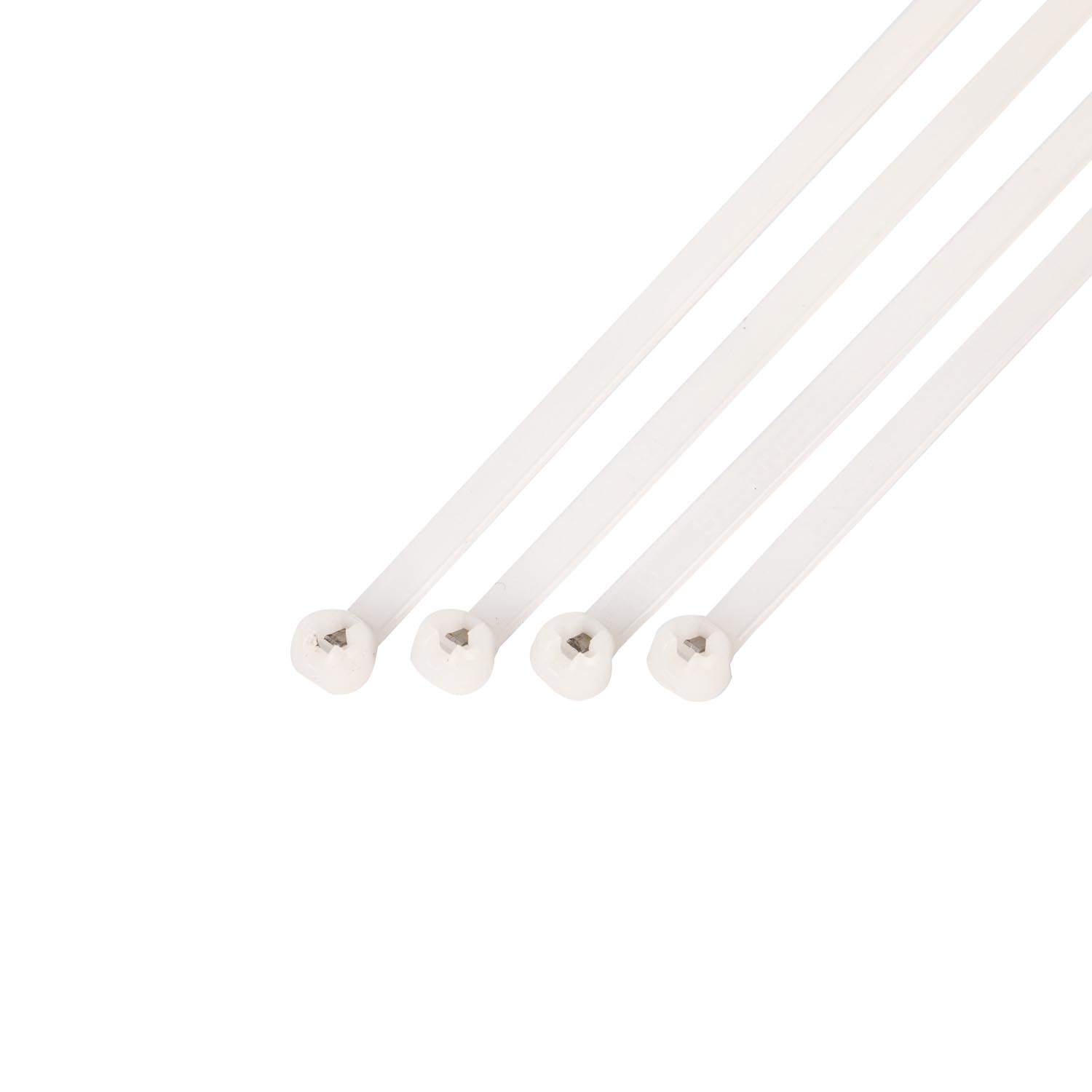

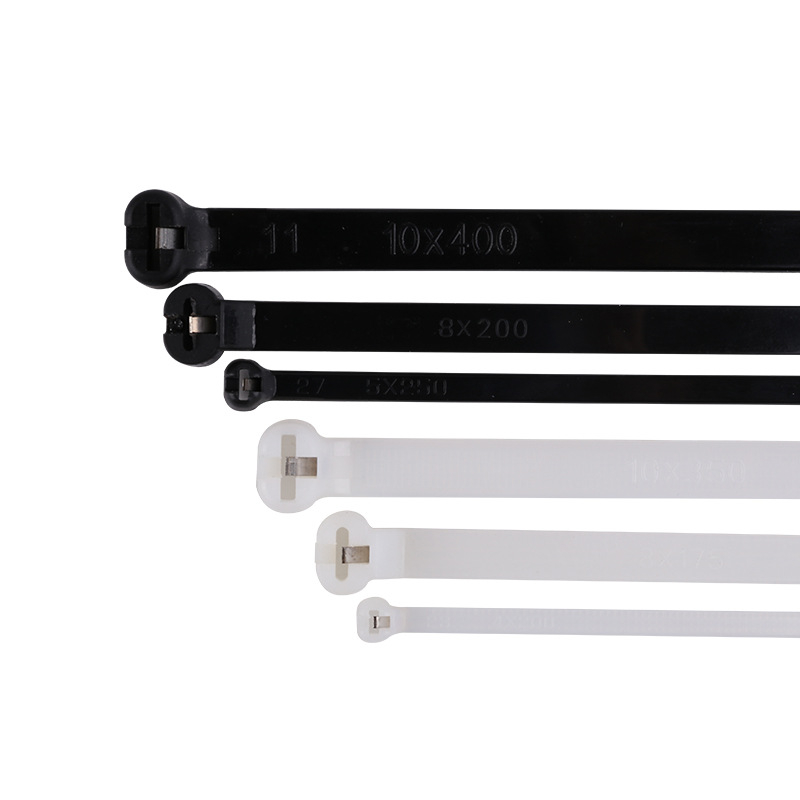

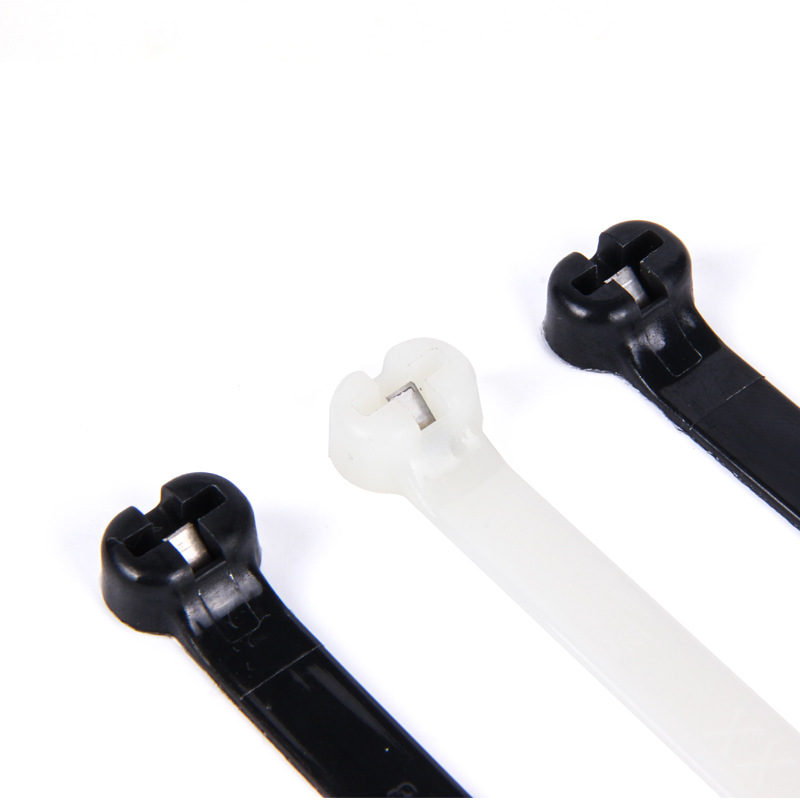

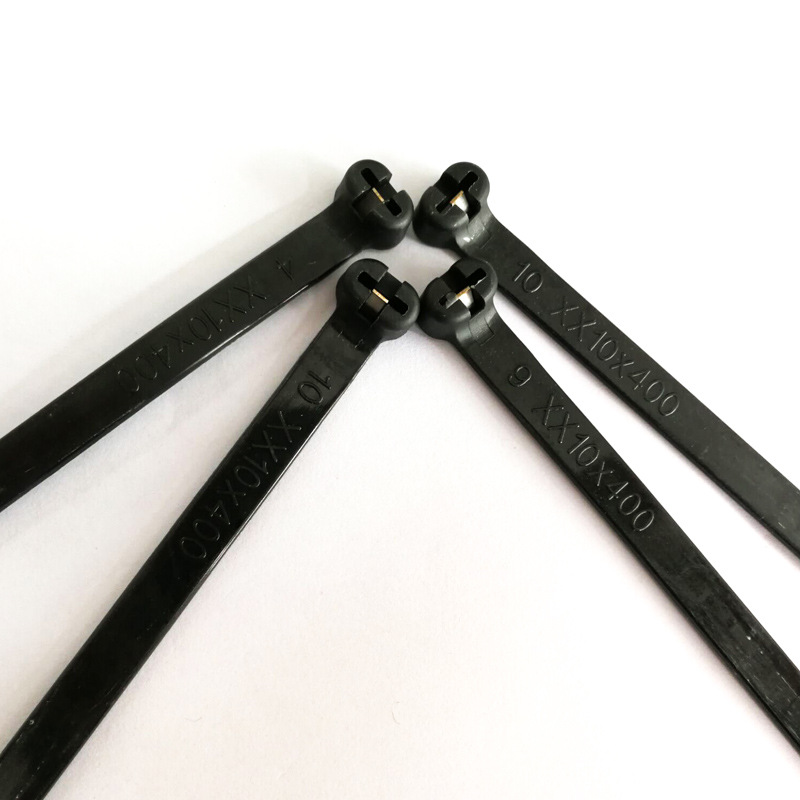

Our marine grade nylon cable ties with stainless steel inlay are engineered for the world’s most demanding industrial and maritime environments, delivering unrivaled durability and performance for cable, hose, and pipe bundling. Constructed with a PA66 marine-grade nylon shell and embedded AISI 304/316 stainless steel inlay, these ties combine corrosion resistance with extreme tensile strength, outperforming standard nylon ties for critical installations. Ideal for offshore cable bundling and coastal facility wiring, they ensure permanent, vibration-proof fastening that stands up to saltwater, UV radiation, and chemical exposure—making them the gold standard for marine, offshore, and heavy industrial applications.
The PA66 nylon exterior repels saltwater, oils, and chemicals, while the fully enclosed stainless steel inlay eliminates galvanic corrosion and rust—an issue that plagues bare metal ties. This dual-material design ensures long-term integrity in saltwater marine environments and chemical processing plants.
The integrated steel core delivers exceptional loop tensile strength, preventing stretching, creep, or brittle fracture under constant stress or vibration. Far exceeding standard nylon ties, they provide a secure hold for high-vibration machinery wiring and offshore cable systems.
Formulated to meet UL 94V-2 fire safety standards, the self-extinguishing nylon sheath and heat-resistant steel inlay maintain structural integrity in high-temperature conditions, adding a critical safety margin for industrial and marine fire-sensitive applications.
The nylon sheath protects the steel inlay from abrasion and weathering, while the steel core reinforces against physical damage. This synergy ensures a maintenance-free service life in extreme temperatures, moisture, and sunlight—reducing replacement costs for long-term infrastructure projects.
Item NO. | Size (mm) | Loop Tensile strength (NLbs) | Min Bundle Diameter (mm) | Max Bundle Diameter (mm) |
DD-NS25T-100 | 2.5x100 | 180N(40lb) | 3 | 20.5 |
DD-NS25T-160 | 2.5x160 | 180N(40lb) | 3 | 39.8 |
DD-NS25T-200 | 2.5x200 | 180N(40lb) | 3 | 52.5 |
DD-NS36T-140 | 3.6x140 | 250N(56lb) | 3 | 33 |
DD-NS36T-200 | 3.6x200 | 250N(56lb) | 3 | 52.5 |
DD-NS36T-300 | 3.6x300 | 250N(56lb) | 3 | 84 |
DD-NS36T-370 | 3.6x370 | 250N(56lb) | 3 | 106 |
DD-NS48T-200 | 4.8x200 | 360N(80lb) | 3 | 49.5 |
DD-NS48T-250 | 4.8x250 | 360N(80lb) | 3 | 65 |
DD-NS48T-300 | 4.8x300 | 360N(80lb) | 3 | 81 |
DD-NS48T-370 | 4.8x370 | 360N(80lb) | 3 | 103.5 |
DD-NS76T-220 | 7.6x220 | 780N(175lb) | 3 | 57.2 |
DD-NS76T-300 | 7.6x300 | 780N(175lb) | 3 | 82.8 |
DD-NS76T-370 | 7.6x370 | 780N(175lb) | 3 | 103.5 |
DD-NS76T-460 | 7.6x460 | 780N(175lb) | 3 | 130.5 |
DD-NS76T-620 | 7.6x620 | 780N(175lb) | 8.5 | 181.5 |
Maritime & Offshore: Securing navigation, communication, and power cables on ships, offshore platforms, and coastal facilities—resisting constant saltwater exposure and humid marine atmospheres.
High-Vibration Machinery: Fastening wiring looms on heavy machinery, engines, and railway rolling stock, preventing loosening from continuous motion and chafing.
Outdoor Critical Infrastructure: Telecom towers, solar farms, and electrical substations, withstanding UV radiation, temperature cycles, and moisture for long-term reliability.
Chemical Processing: Bundling hoses and pipes in chemical plants, resisting corrosive chemicals and industrial oils without degradation.
Our marine grade steel inlay cable ties meet global industry standards, including UL 94V-2 (fire safety), RoHS (environmental compliance), and are manufactured to ISO 9001 quality standards. The AISI 304/316 stainless steel inlay complies with marine corrosion resistance specifications for offshore and coastal applications.
A: Yes, the AISI 316 stainless steel inlay option is rated for continuous saltwater and subsea exposure, with the nylon sheath providing full corrosion protection.
A: Use a standard cable tie tensioning tool for optimal force; trim excess tail with flush-cut diagonal pliers to avoid sharp metal edges from the steel inlay.
A: The PA66 nylon is UV and cold-stabilized, performing reliably in temperatures as low as -40°C, with no loss of flexibility or strength.
We offer custom size marine grade cable ties (length, width, and tensile strength) to meet unique project requirements, including custom color coding for cable management systems. Bulk procurement options are available for industrial contractors, offshore engineering firms, and marine equipment manufacturers, with volume pricing and flexible lead times. Our technical team provides pre-sales engineering support to ensure the right tie selection for your specific environment and application.
