Our 3X heat shrink tubing is a high-performance thermoplastic solution engineered for heavy-duty cable insulation and component protection across industrial sectors. Featuring a 3:1 shrink ratio, this tubing expands to fit large-diameter cables, connectors and irregularly shaped components, then shrinks tightly to form a seamless, abrasion-resistant barrier when heat is applied. Crafted from premium cross-linked polyolefin as the primary material (with PVC and fluoropolymer options available), it delivers superior environmental sealing and mechanical reinforcement for applications where standard 2X tubing falls short. Ideal for harsh operating conditions, the 3X heat shrink tubing provides reliable insulation against electrical shock, short circuits and corrosion, making it a staple for B2B projects requiring robust, long-lasting cable protection.

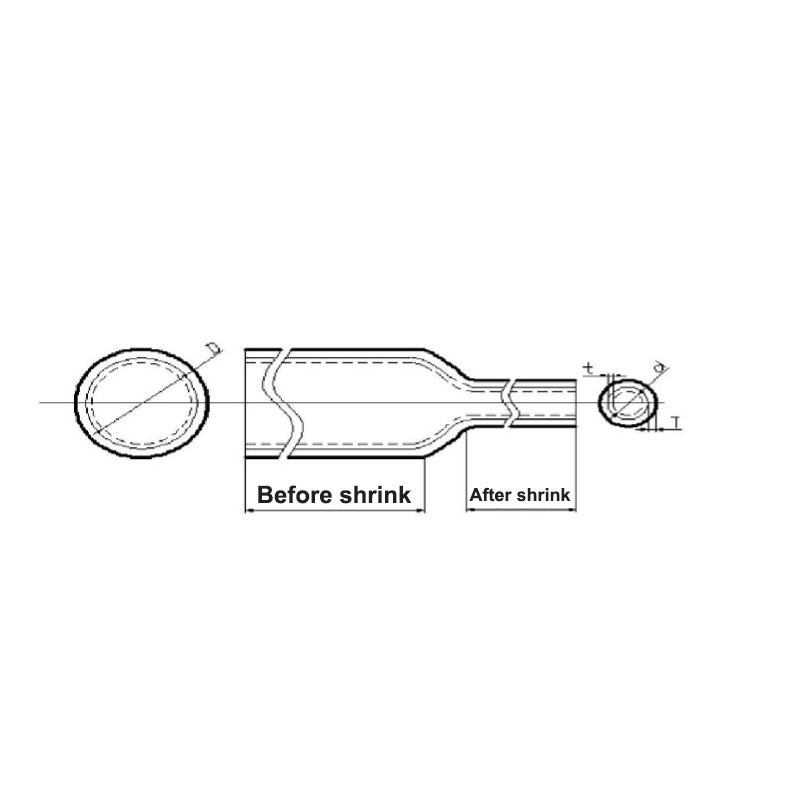

The 3:1 shrink ratio enables the tubing to wrap tightly around bulky connectors, splices and uneven surfaces, eliminating gaps that cause moisture intrusion and corrosion.
Offers a multi-layer defense against abrasion, chemicals, salt spray and extreme temperatures, critical for outdoor, marine and underground installations.
Reinforces cable entry points and weak joints to resist bending, pulling and vibration damage, reducing equipment failure rates in industrial machinery.
Meets strict fire safety standards, preventing flame spread and adding an extra layer of protection for electrical systems in high-risk environments.
Requires only a standard heat gun for application—no special tools needed—enabling fast field repairs and assembly line efficiency.
Parameter | Polyolefin 3X Tubing | Adhesive-Lined 3X Tubing |
Shrink Ratio | 3:1 | 3:1 |
Operating Temperature | -55℃ to +125℃ | -55℃ to +125℃ |
Full Shrink Temperature | 115℃-200℃ | 115℃-200℃ |
Axial Change Rate | -15%～+5% | -15%～+5% |
Tensile Strength | ≥10.3 MPa | ≥9.8 MPa |
Elongation at Break | ≥200% | ≥180% |
Dielectric Strength | ≥19.7 MV/m | ≥18.5 MV/m |
Flame Retardancy | DIN 5510-2 S3 | DIN 5510-2 S3 |
Water Absorption | ＜1.0% | ＜0.8% |
Protects critical wiring harnesses in aircraft and military equipment, meeting MIL-STD and SAE-AS 81531 standards for extreme reliability.
Seals underwater cable joints and deck wiring against saltwater corrosion, ideal for shipbuilding and offshore platform installations.
Provides a waterproof, crush-resistant layer for power and telecom cables, preventing damage from soil movement and chemical exposure.
Reinforces wiring in manufacturing equipment and power tools, withstanding constant vibration and mechanical stress in factory settings.
Resists harsh chemicals and extreme temperatures in drilling and refinery equipment, ensuring safe electrical operation in explosive environments.
Our 3X heat shrink tubing is fully certified to global industry standards, ensuring compliance for international B2B projects:
SAE-AS 81531: Meets aerospace wiring identification and performance requirements
MIL-STD-202G: Compliant with military testing standards for environmental durability
DIN 5510-2: Passes European rail and industrial fire safety regulations
RoHS & REACH: Free of hazardous substances, meeting EU environmental standards
UL 224: Certified for electrical insulation and flame retardancy in North America
A: Adhesive-lined tubing features an internal glue layer that melts during shrinking, creating a 100% waterproof, airtight seal—ideal for outdoor and marine use, while standard tubing is lighter for general insulation.
A: It is designed for low-to-medium voltage systems (up to 600V). For high-voltage applications, we offer custom fluoropolymer 3X tubing with enhanced dielectric properties.
A: Choose a 'tube with an expanded inner diameter 20-30% larger than the object to be covered, ensuring a tight fit after shrinking without excessive stretching.
We offer fully customizable 3X heat shrink tubing for B2B clients, including:
Custom diameters and lengths to match your specific equipment dimensions
Color-coding and printed labeling (barcodes, part numbers) for circuit identification
Material customization (fluoropolymer for high-chemical resistance, elastomeric for extreme flexibility)

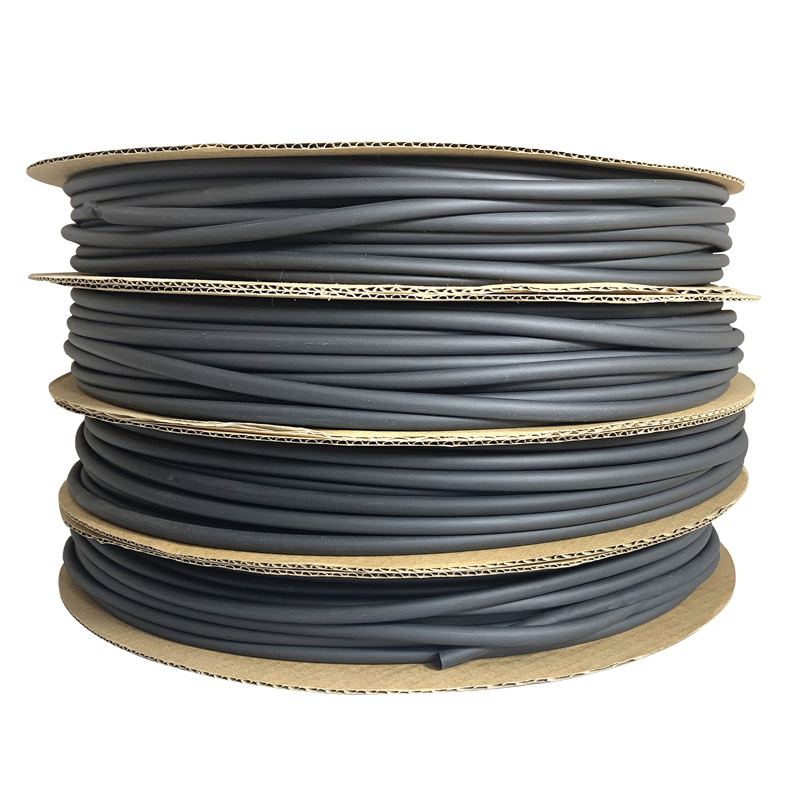

Bulk packaging options (reels, cut lengths, bulk cartons) to optimize your supply chain
Our bulk procurement program provides volume pricing for industrial manufacturers, electrical contractors and OEMs, with flexible lead times and global shipping. We also offer technical support for custom application design, ensuring our 3X tubing integrates seamlessly with your production processes.
