The Critical Role of Stainless Steel Cable Cleats in Short‑Circuit Protection

The Critical Role of Stainless Steel Cable Cleats in Short‑Circuit Protection

In electrical power systems, few events are as destructive—and as frequently overlooked in system design—as a short‑circuit fault. When a fault occurs, the resulting electromagnetic forces can cause cables to whip violently, collide with adjacent equipment, or even break free from their supports. The consequences range from costly equipment damage and prolonged downtime to serious safety hazards for personnel. At the heart of protecting against such events lies a component that is often underestimated: the cable cleat. And among all available materials, stainless steel cable cleats have emerged as the benchmark for reliable short‑circuit protection. This article examines this critical property in detail, explaining why stainless steel is the material of choice when fault‑current withstand capability is non‑negotiable.

The Physics of Short‑Circuit Forces

To appreciate why material selection matters, it is helpful to understand what happens during a short circuit. In a three‑phase power system, fault currents can reach tens or even hundreds of kiloamperes. The enormous current flowing through parallel conductors generates powerful electromagnetic forces that act to push the conductors apart. According to the formula F = k ⋅ I², the force is proportional to the square of the current. This means that even a modest increase in fault current results in a dramatic rise in the mechanical stress on the cable supports.

Under such conditions, inadequately restrained cables can experience peak forces exceeding several kilonewtons per meter of cable length. The resulting whipping motion can tear cables from trays, damage insulation, rupture conductors, and cause secondary faults that expand the scope of the incident. For critical installations—such as power substations, oil and gas platforms, and mass transit systems—the economic and safety implications are severe. It is this extreme force that demands cable cleats with extraordinary mechanical strength and impact resistance.

Why Stainless Steel Excels in Fault Current Scenarios

Not all cable cleats are created equal when it comes to short‑circuit performance. While aluminium cleats offer lightweight construction and polymer cleats provide chemical resistance, stainless steel stands apart for several key reasons:

Superior tensile and yield strength. Stainless steel, particularly grades 304 and 316, offers high tensile strength (typically above 500 MPa) and excellent yield strength. This means that even when subjected to sudden, extreme loads, the cleat body does not deform permanently. The material retains its original shape and holding geometry, ensuring that cables remain securely restrained after a fault event.

Excellent ductility and impact toughness. Unlike brittle materials that may fracture under shock loading, stainless steel exhibits good ductility. This property allows the cleat to absorb sudden impact forces without catastrophic failure. In short‑circuit tests, stainless steel cleats consistently demonstrate the ability to withstand multiple fault events without losing their retention capability.

High creep resistance at elevated temperatures. During a short‑circuit event, the rapid temperature rise in the cable or surrounding environment can soften weaker materials. Stainless steel maintains its mechanical properties up to high temperatures, ensuring that the cleat does not lose its grip at the very moment it is needed most.

Consistent performance across temperature extremes. Many stainless steel cleats are certified for use from −60°C to +250°C continuous operation, and fire‑tested up to 1200°C. This wide operating window guarantees reliable short‑circuit protection regardless of ambient conditions—whether in arctic installations or industrial furnaces.

IEC 61914 Compliance and Testing

The global benchmark for cable cleat performance is IEC 61914, the international standard that specifies requirements and tests for cable cleats used in electrical installations. Under this standard, cleats are subjected to rigorous short‑circuit testing to verify their mechanical retention capability.

In a typical test, a sample of cable cleats is installed on a cable tray or ladder, and a calibrated short‑circuit current is applied. The test measures both peak force withstand and impact resistance. Stainless steel cleats from reputable manufacturers consistently achieve peak fault‑current ratings of up to 235kA, depending on cleat spacing and cable configuration. Third‑party certification to IEC 61914 provides engineers and specifiers with the confidence that the product will perform as claimed.

Crucially, the standard also assesses the condition of the cleat after the fault—not just whether it held, but whether the cable itself was damaged. Stainless steel cleats, when equipped with appropriate polymeric liners, distribute clamping forces evenly and prevent localised crushing or abrasion of the cable sheath, preserving cable integrity even under extreme stress.

The Role of Liners and Design

While the stainless steel body provides the structural backbone, modern stainless steel cleats incorporate integral polymeric liners—often manufactured from Low Smoke Zero Halogen (LSZH) materials. These liners serve two critical purposes during a short circuit:

First, they cushion the cable, absorbing micro‑shocks and distributing the clamping pressure over a wider area. This prevents the sharp edges of the cleat from cutting into the cable sheath under high fault forces. Second, the liners offer electrical insulation and vibration damping, reducing wear over the cable's service life.

Some designs also feature a unique hinged or two‑piece configuration that allows the cleat to close securely around the cable without needing to slide it over the cable end—a feature that simplifies installation and ensures consistent clamping force.

Real‑World Applications

The exceptional short‑circuit protection offered by stainless steel cleats makes them indispensable in sectors where fault currents are high and the cost of failure is immense:

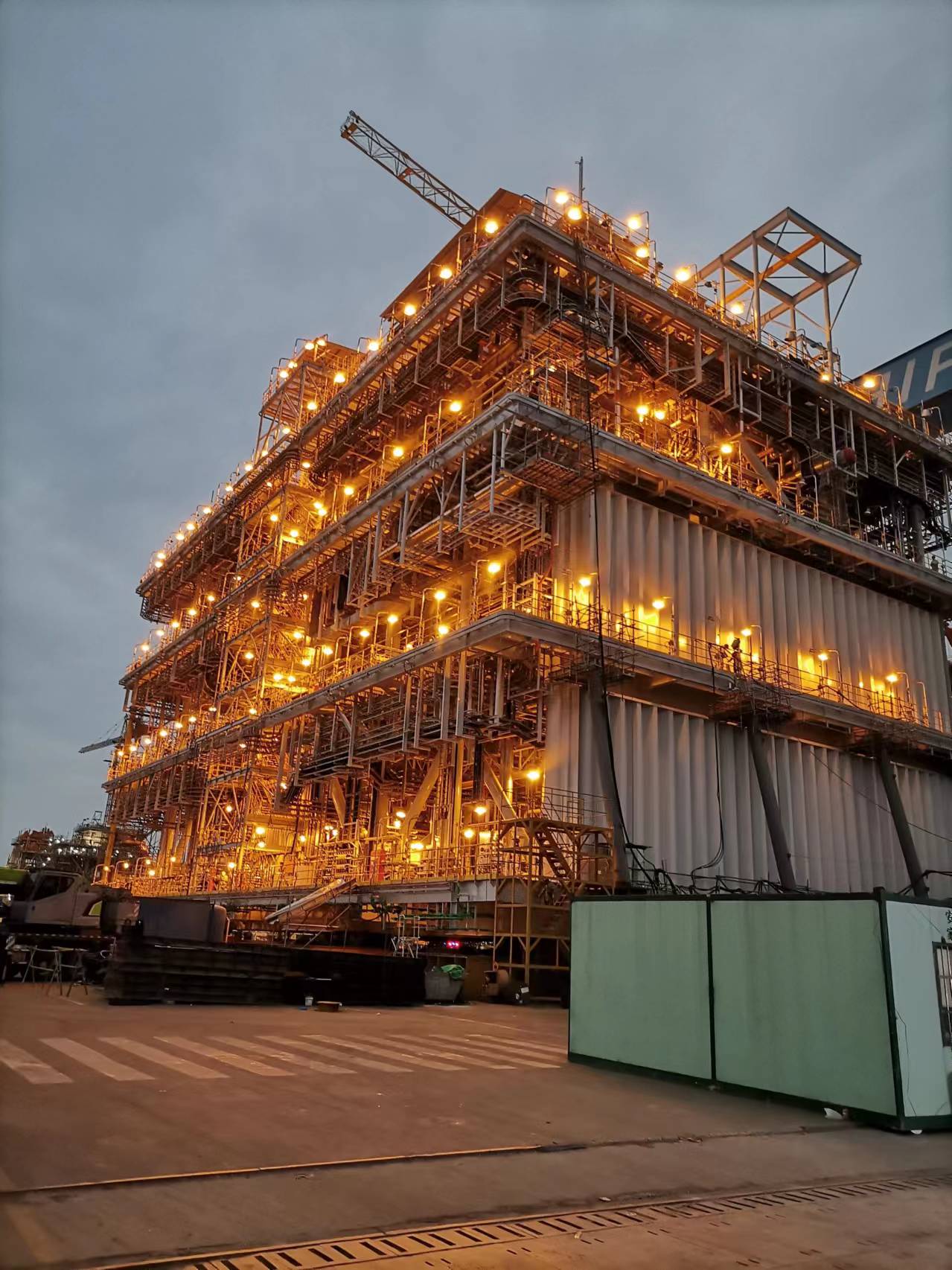

Oil and Gas Platforms: Fault currents on offshore platforms can exceed 100kA. Stainless steel cleats provide the corrosion resistance and fault‑current withstand needed in salt‑laden, explosive‑rated environments.

Rail Transit Systems: Subway and light‑rail tunnels depend on reliable cable retention to prevent faults from disrupting signalling and traction power. Fire‑rated stainless steel cleats also support circuit integrity during emergency conditions.

Data Centers: As power densities rise, so does the risk of high‑current faults. Stainless steel cleats ensure that power cables remain restrained, protecting downstream IT equipment from cascading failures.

Renewable Energy Plants: Wind farms and solar installations often experience harsh environmental conditions and fluctuating loads, making robust cable retention essential.

Conclusion

Among the many advantages of stainless steel cable cleats—corrosion resistance, non‑magnetic properties, temperature tolerance—perhaps none is as critical as their ability to withstand short‑circuit forces. When a fault occurs, microseconds matter; the cleat must act as the last line of defence against violent cable movement. Stainless steel's unique combination of strength, ductility, and thermal stability, validated by rigorous testing to IEC 61914, makes it the premier choice for applications where fault‑current protection is paramount.

In an era where power systems are becoming more complex and fault levels are increasing, engineers and project managers cannot afford to compromise on cable retention. Choosing stainless steel cable cleats means choosing the proven performance that ensures safety, reliability, and continuity of service—even under the most extreme fault conditions.
